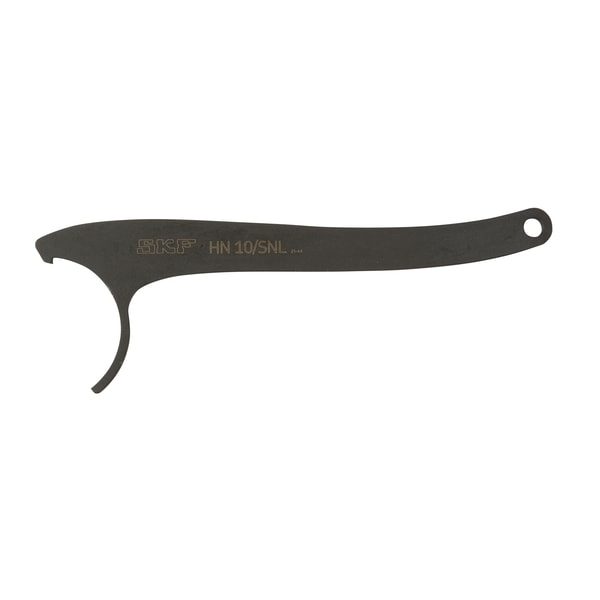

SKF HN10/SNL Bearing mounting / dismounting tool
Pricing
Request a quote
We reply within 24 hours
Product Description
SKF HN10/SNL bearing mounting / dismounting tool. Precision fitting tool — impact ring set (TMFT), induction heater (TIH), oil-injection dismounting kit (TMOF), hydraulic pull-up nut (HMV), or three-arm mechanical puller (TMMR / TMMD) — used to mount and dismount rolling bearings without damage.
Technical Specifications
- Type
- Bearing mounting / dismounting tool
- Designation
- SKF HN10/SNL
- HS code
- 8205.59
- Nose width (Nₖ)
- 7 mm
- Nose height (Nₕ)
- 3 mm
- Thickness (n)
- 7 mm
- Length (L)
- 247 mm
- Working length (l)
- 245 mm
- Height (H)
- 82 mm
- Recommended applications
- Special designed tool for tightening/loosening lock nuts in split plummer (pillow) block housings, where space is the limiting factor. Alternative use is general bearing arrangements and of lock nuts on shafts, adapter sleeves, and withdrawal sleeves in a wide variety of applications.
- Series
- Hook spanner, for housings, HN SNL
- Allows bearing mounting
- Yes, angle method or with clearance reduction measurement
- Fits on lock nuts inside SKF split pillow block housings (SNL)
- Yes
- Suitable SKF Locknut
- KM 10, KMFE 10, KMK 10, KMT 9, N 10
- Material
- Medium carbon steel, hardened and tempered
- Material handle
- Steel
- Coating
- Black phosphated
- Colour
- Black metallic
- Country of Manufacturing (COM code)
- 35 - Slovenia
- Product net weight
- 0.31 kg
- eClass code
- 23-05-19-01
- UNSPSC code
- 27111712
Standards & Compliance
- Standard
- SKF designation convention
- Material
- As declared by SKF designation suffix
- Temperature Range
- Per SKF product data
- HS Code
- 8205.59
Compatibility & Fitment
Interchange with peer OEM equivalents on identical boundary plan and execution — confirm cage, clearance, sealing and precision-class suffix before substitution.
Product Documentation
More from SKF
SKF
SKF IR10X13X12.5 Needle roller bearing component (inner ring / cage assembly / individual roller)
SKF

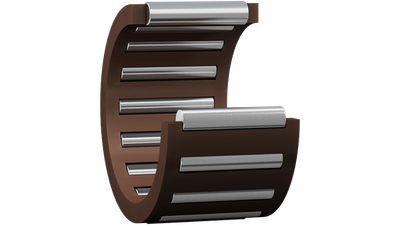

SKF K10X13X10TN Needle roller and cage assembly (K / KBK / KZK)
SKF

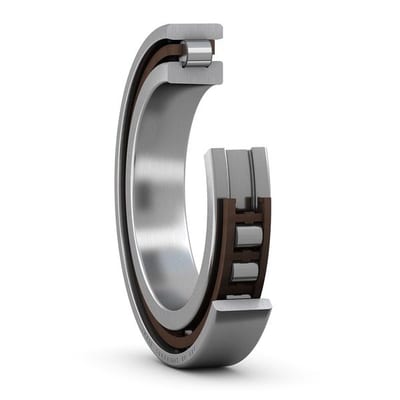

SKF N1009KTNHA/SP Super-precision cylindrical roller bearing (NN 30XX / N 10XX)
SKF

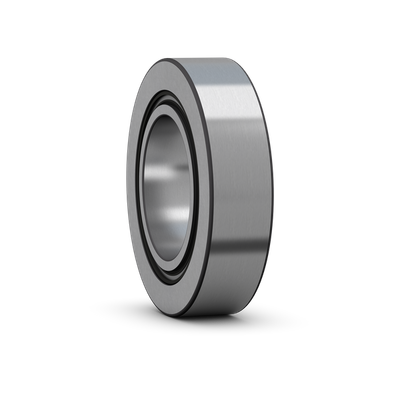

SKF NA22/8.2RSX Track roller — support roller
SKF

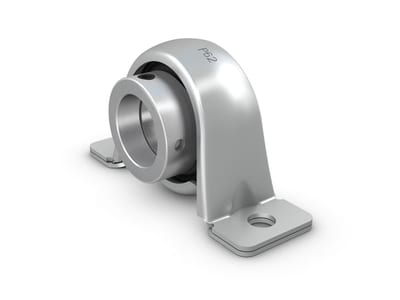

SKF P17FM Pillow block ball bearing unit (UCP / UEP / UKP)
SKF

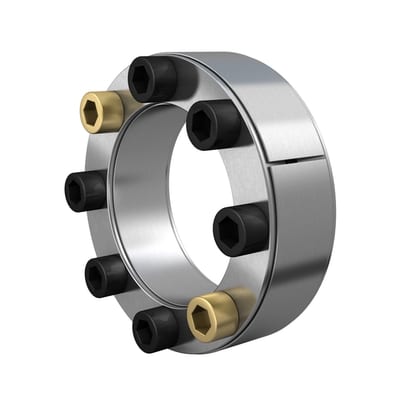

SKF PHFFX10-130X180 Keyless shaft bushing / locking assembly
SKF

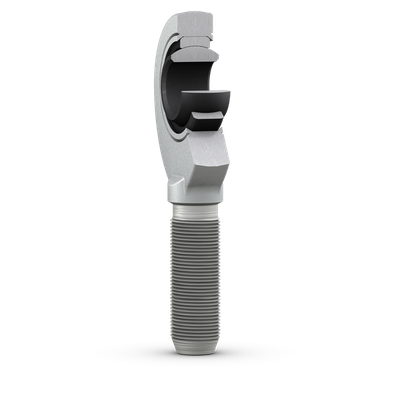

SKF SA12E Rod end (spherical plain bearing with threaded eye)
