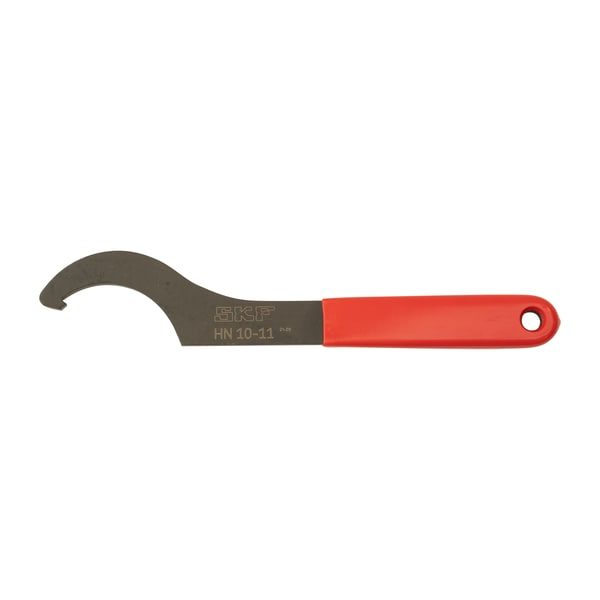

SKF HN10-11 Hook spanner
Pricing
Request a quote
We reply within 24 hours
Product Description
SKF HN10-11 bearing mounting / dismounting tool. Precision fitting tool — impact ring set (TMFT), induction heater (TIH), oil-injection dismounting kit (TMOF), hydraulic pull-up nut (HMV), or three-arm mechanical puller (TMMR / TMMD) — used to mount and dismount rolling bearings without damage.
Technical Specifications
- Type
- Bearing mounting / dismounting tool
- Designation
- SKF HN10-11
- HS code
- 8205.59
- Nose width (Nₖ)
- 7 mm
- Nose height (Nₕ)
- 4 mm
- Thickness (n)
- 7 mm
- Length (L)
- 243 mm
- Working length (l)
- 210 mm
- Height (H)
- 46 mm
- Recommended applications
- For applications that require tightening/loosening a wide variety of lock nuts on shafts, adapter sleeves, and withdrawal sleeves.
- Series
- Hook spanner, standard, HN
- Allows bearing mounting
- Yes, angle method or with clearance reduction measurement
- Size according DIN 1810
- 68 to 75 mm
- Fits on lock nuts inside SKF split pillow block housings (SNL)
- No
- Suitable SKF Locknut
- KM 10, KM 11, KMFE 10, KMFE 11, KMFE 11 H, KMK 10, KMK 11, KMT 10, KMT 9, N 10, N 11
- Material
- Medium carbon steel, hardened and tempered
- Material handle
- Durable soft plastic
- Coating
- Black phosphated
- Colour
- Black, with red handle
- Part of a kit
- Yes, HN 4-16/SET
- Country of Manufacturing (COM code)
- 35 - Slovenia
- Product net weight
- 0.28 kg
- eClass code
- 23-05-19-01
- UNSPSC code
- 27111712
Standards & Compliance
- Standard
- SKF designation convention
- Material
- As declared by SKF designation suffix
- Temperature Range
- Per SKF product data
- HS Code
- 8205.59
Cross References
- Enerpac 1011
- Simatec 1011
- Bega 1011
- Alt. designation HN 10-11
- Equivalent: 1011 (Enerpac)
- Equivalent: 1011 (Simatec)
- Equivalent: 1011 (Bega)
Compatibility & Fitment
Interchange with peer OEM equivalents on identical boundary plan and execution — confirm cage, clearance, sealing and precision-class suffix before substitution.
Product Documentation
More from SKF
SKF
SKF IR100X115X40 Needle roller bearing component (inner ring / cage assembly / individual roller)
SKF

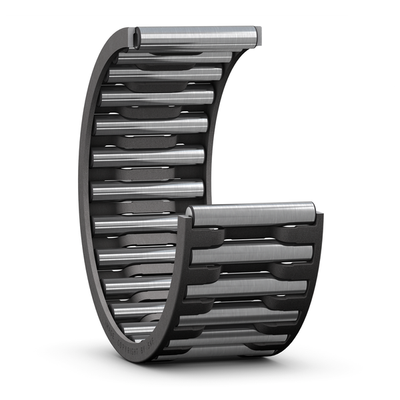

SKF K105X112X21 Needle roller and cage assembly (K / KBK / KZK)
SKF

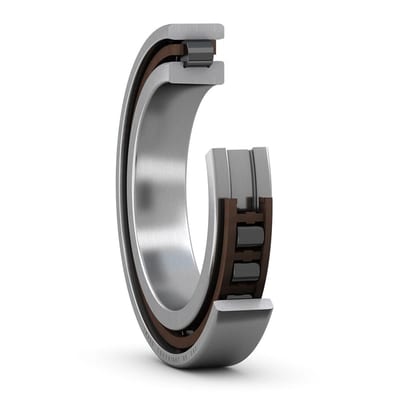

SKF N1008KTNHA/HC5SP Super-precision cylindrical roller bearing (NN 30XX / N 10XX)
