SKF HM801346X/CL7A Single-row tapered roller bearing
Pricing
Request a quote
We reply within 24 hours
Product Description
SKF HM801346X/CL7A single-row tapered roller bearing. Single-row tapered roller bearing designed to take combined heavy radial and one-direction axial load. Cone (inner ring), cup (outer ring) and rollers converge at a common apex on the bearing axis. Two bearings are always mounted in opposition. Metric dimensions per ISO 355; imperial to ANSI/ABMA 19.1.
Technical Specifications
- Type
- Single-row tapered roller bearing
- Designation
- SKF HM801346X/CL7A
- HS code
- 8482.20
- Bore diameter
- 38.1 mm
- Width, total
- 28.575 mm
- Width, inner ring
- 28.575 mm
- Basic dynamic load rating
- 106 kN
- Basic static load rating
- 118 kN
- Bearing part
- Inner ring, cage and roller assembly (cone assembly)
- Bore type
- Cylindrical
- Cage
- Sheet metal
- Arrangement of contact angle (double-row bearing)
- Not applicable
- Matched arrangement
- No
- Coating
- Without
- Sealing
- Without
- Lubricant
- None
- Relubrication feature
- Without
- Unit system
- Inch
- Indicative carbon footprint for new product
- 1.8 kg CO2e
- Product net weight
- 0.496 kg
- eClass code
- 23-05-09-10
- UNSPSC code
- 31171516
Standards & Compliance
- Standard
- SKF designation convention
- Material
- As declared by SKF designation suffix
- Temperature Range
- Per SKF product data
- HS Code
- 8482.20
Cross References
- Timken 8013467
- NSK 8013467
- NTN 8013467
- FAG 8013467
- Koyo 8013467
- Equivalent: 8013467 (Timken)
- Equivalent: 8013467 (NSK)
- Equivalent: 8013467 (NTN)
- Equivalent: 8013467 (FAG)
- Equivalent: 8013467 (Koyo)
Compatibility & Fitment
Interchange with peer OEM equivalents on identical boundary plan and execution — confirm cage, clearance, sealing and precision-class suffix before substitution.
Product Documentation
More from SKF
SKF

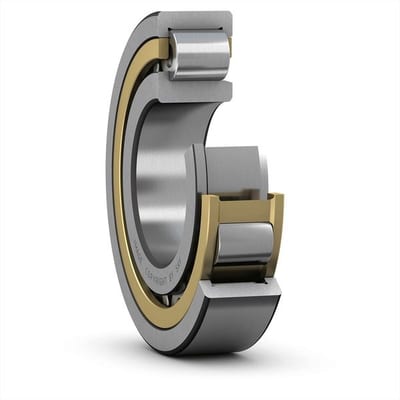

SKF NJ309ECML/C3 Single-row cylindrical roller bearing (NU / N / NJ / NUP)
SKF

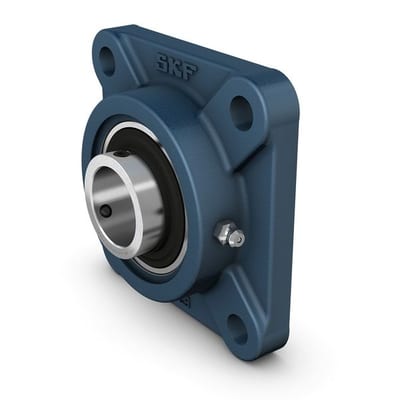

SKF FY20TF/VA228 Flanged ball bearing unit (UCF / UCFC / UCFL)
SKF

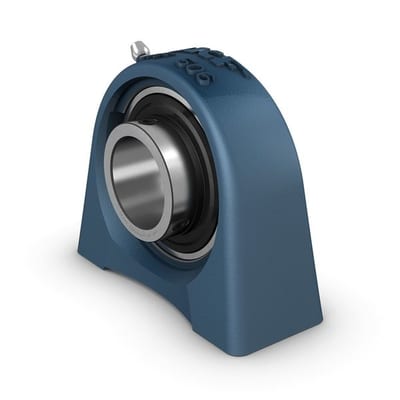

SKF SYF20TF Pillow block ball bearing unit (UCP / UEP / UKP)
SKF
SKF HM803110/2/CL7C Single-row tapered roller bearing
SKF
SKF NJ309ECP Single-row cylindrical roller bearing (NU / N / NJ / NUP)
SKF
SKF FY20TR Flanged ball bearing unit (UCF / UCFC / UCFL)
SKF

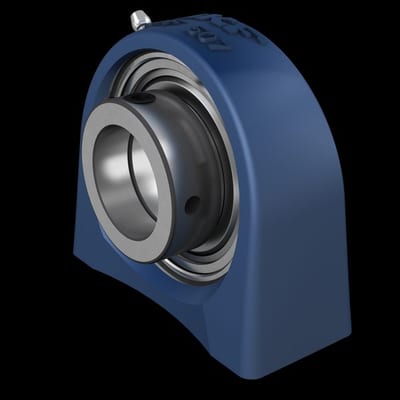

SKF SYF25FM Pillow block ball bearing unit (UCP / UEP / UKP)
SKF
SKF HM803146/110 Single-row tapered roller bearing
Technical guides
- Tapered Roller Bearing Finder — by Bore and Series (302, 303, 313, 320, 322, 323, 329–332, Inch Cone/Cup) SKF
- SKF 81xxx Cylindrical Roller Thrust Bearing — Dimensions, Load Ratings & Interchange (81102 to 81140)
- SKF Deep Groove Ball Bearing Reference — 6000 / 6200 / 6300 / 6400 Series (Dimensions, Load Ratings, Interchange to FAG NSK NTN Timken)
Catalogue entry last verified: 2026-09-30. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
