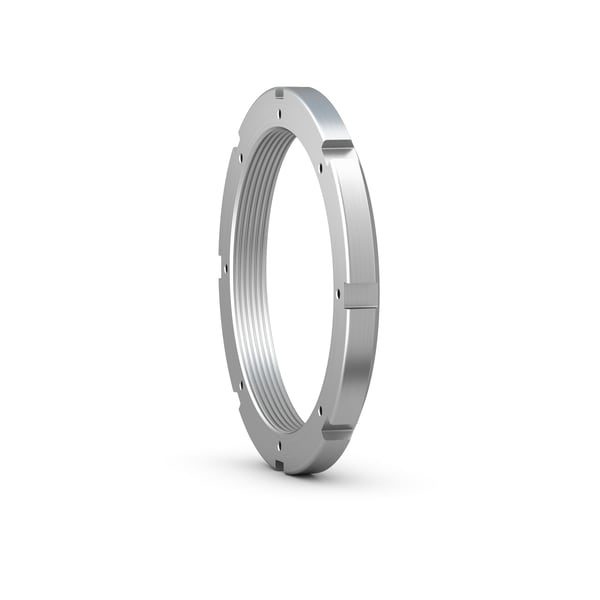

SKF HM3184 Bearing lock nut (keyway type)
Pricing
Request a quote
We reply within 24 hours
Product Description
SKF HM3184 bearing lock nut (keyway type). Bearing lock nut in the KM series with axial keyway that engages an MB lock washer. Locks a bearing, adapter sleeve or withdrawal sleeve axially on a shaft. Thread size and boundary dimensions per ISO 2982-1 / DIN 981. Nut always paired with the matching MB washer of the same numeric designation.
Technical Specifications
- Type
- Bearing lock nut (keyway type)
- Designation
- SKF HM3184
- Bore d
- 420 mm
- HS code
- 8483.30
- Thread designation
- Tr 420x5
- Bore diameter
- 420 mm
- Outside diameter
- 540 mm
- Width
- 70 mm
- Locking device
- Locking clip
- Nut for hydraulic mounting
- No
- Associated mounting tool
- TMFN 80-500
- Product net weight
- 45 kg
- eClass code
- 23-11-07-05
- UNSPSC code
- 31163218
Standards & Compliance
- Standard
- SKF designation convention (see description for governing ISO / DIN)
- Material
- As declared by SKF designation suffix
- Temperature Range
- Per SKF product data
- HS Code
- 8483.30
Cross References
- FAG 3184
- NSK 3184
- Timken 3184
- NTN 3184
- Koyo 3184
- Equivalent: 3184 (FAG)
- Equivalent: 3184 (NSK)
- Equivalent: 3184 (Timken)
- Equivalent: 3184 (NTN)
- Equivalent: 3184 (Koyo)
Compatibility & Fitment
Interchange with peer OEM equivalents on identical boundary plan and execution — confirm cage, clearance, sealing and precision-class suffix before substitution.
