SKF GEH17C Radial spherical plain bearing
Pricing
Request a quote
We reply within 24 hours
Product Description

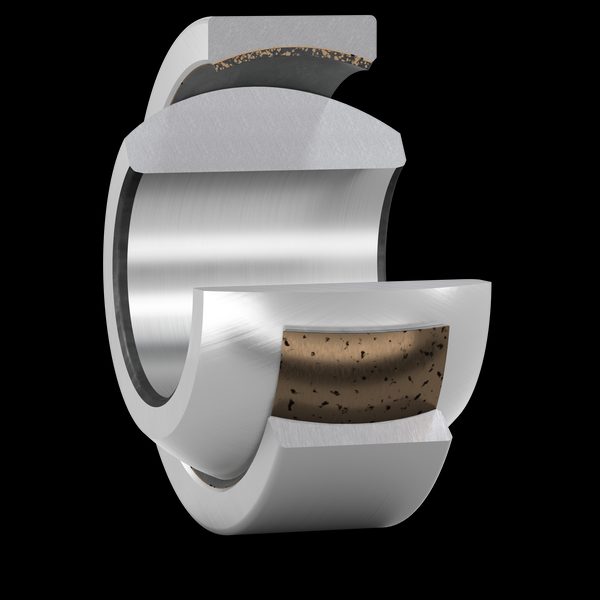

SKF GEH17C radial spherical plain bearing. Spherical inner ring sliding in a matched spherical outer bore, providing self-alignment and heavy static / dynamic load capacity in slow oscillating movements (hydraulic cylinder rod ends, marine winch link pins, deck-crane pivots). Steel-on-steel (GE-ES), steel-on-PTFE-composite (GE-2RS), stainless-on-stainless (GE-C), and re-lubrication grooves per suffix. ISO 6124 dimensioned.
Technical Specifications
- Type
- Radial spherical plain bearing
- Designation
- SKF GEH17C
- HS code
- 8483.30
- Bore diameter
- 17 mm
- Outside diameter
- 35 mm
- Width, inner ring
- 20 mm
- Width, outer ring
- 12 mm
- Basic dynamic load rating
- 31.5 kN
- Basic static load rating
- 78 kN
- Sliding contact surface combination
- Steel/PTFE sintered bronze
- Material, inner ring
- Bearing steel
- Material, outer ring
- Steel
- Maintenance
- Maintenance-free
- Sealing
- Without
- Relubrication feature
- Without
- Product net weight
- 0.0808 kg
- eClass code
- 23-05-01-06
- UNSPSC code
- 31171515
Standards & Compliance
- Standard
- SKF designation convention (see description for governing ISO / DIN)
- Material
- As declared by SKF designation suffix
- Temperature Range
- Per SKF product data
- HS Code
- 8483.30
Compatibility & Fitment
Interchange with peer OEM equivalents on identical boundary plan and execution — confirm cage, clearance, sealing and precision-class suffix before substitution.
