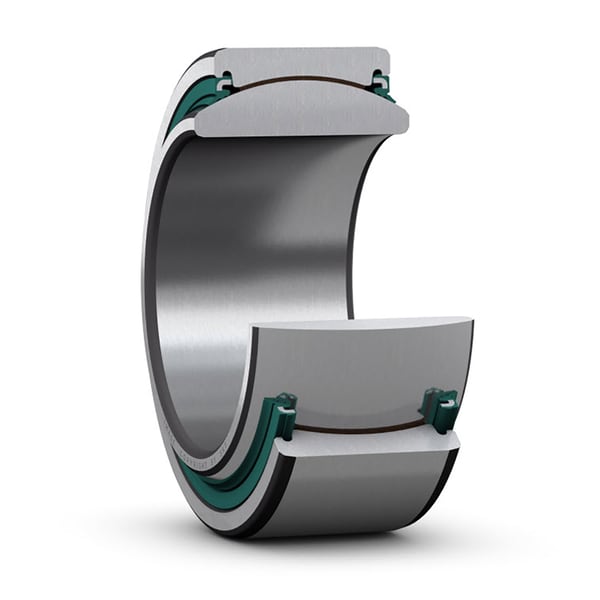

SKF GE25TXG3E Radial spherical plain bearing
Pricing
Request a quote
We reply within 24 hours
Product Description
SKF GE25TXG3E radial spherical plain bearing. Spherical inner ring sliding in a matched spherical outer bore, providing self-alignment and heavy static / dynamic load capacity in slow oscillating movements (hydraulic cylinder rod ends, marine winch link pins, deck-crane pivots). Steel-on-steel (GE-ES), steel-on-PTFE-composite (GE-2RS), stainless-on-stainless (GE-C), and re-lubrication grooves per suffix. ISO 6124 dimensioned.
Technical Specifications
- Type
- Radial spherical plain bearing
- Designation
- SKF GE25TXG3E
- HS code
- 8483.30
- Bore diameter
- 25 mm
- Outside diameter
- 42 mm
- Width, inner ring
- 20 mm
- Width, outer ring
- 16 mm
- Basic dynamic load rating
- 137 kN
- Basic static load rating
- 228 kN
- Sliding contact surface combination
- Steel/PTFE fabric
- Material, inner ring
- Stainless steel
- Material, outer ring
- Stainless steel
- Maintenance
- Maintenance-free
- Sealing
- Without
- Relubrication feature
- Without
- Product net weight
- 0.11 kg
- eClass code
- 23-05-01-06
- UNSPSC code
- 31171515
Standards & Compliance
- Standard
- SKF designation convention (see description for governing ISO / DIN)
- Material
- As declared by SKF designation suffix
- Temperature Range
- Per SKF product data
- HS Code
- 8483.30
Cross References
- INA 253
- Timken 253
- NSK 253
- Aurora 253
- Equivalent: 253 (INA)
- Equivalent: 253 (Timken)
- Equivalent: 253 (NSK)
- Equivalent: 253 (Aurora)
Compatibility & Fitment
Interchange with peer OEM equivalents on identical boundary plan and execution — confirm cage, clearance, sealing and precision-class suffix before substitution.
Product Documentation
More from SKF
SKF

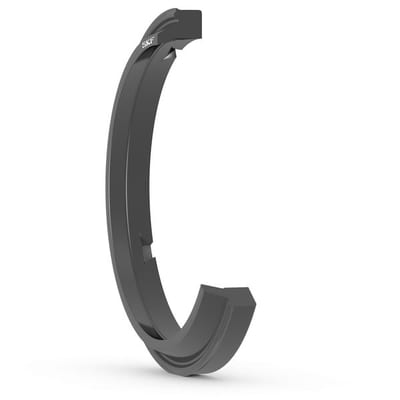

SKF DTW-7500-J2G Hydraulic rod wiper seal
SKF
SKF 7002CE/P4A Super-precision angular contact ball bearing
SKF
SKF KM21 Bearing lock nut (keyway type)
SKF
SKF CUT125X109.5X6.3 Hydraulic piston seal
SKF
SKF FSAF22216 Split pillow-block housing (SNL / SAF / SAW)
SKF
SKF DZ250-6375-500-E2F Hydraulic rod seal / buffer seal
SKF
SKF F4BE104-SRB-SLE Roller-bearing flanged unit
SKF
SKF H3126L Adapter sleeve
Technical guides
- Plain Bearing Finder — Spherical Plain Bearings GE..E / GE..ES, Composite Bushes PCM / PCMF and Sintered Bronze Bushes PSM / PBM by Bore (SKF)
- SKF 81xxx Cylindrical Roller Thrust Bearing — Dimensions, Load Ratings & Interchange (81102 to 81140)
- SKF Deep Groove Ball Bearing Reference — 6000 / 6200 / 6300 / 6400 Series (Dimensions, Load Ratings, Interchange to FAG NSK NTN Timken)
Catalogue entry last verified: 2026-08-13. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy GE25TXG3E?
- GE25TXG3E can be ordered from cballast.com as a SKF catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this SKF product?
- The manufacturer part number is GE25TXG3E.
- What is the HS code for GE25TXG3E?
- The customs tariff (HS) code for GE25TXG3E is 8483.30.
- Who manufactures GE25TXG3E?
- GE25TXG3E is a SKF product in the Bearings & Power Transmission range.
- Is a datasheet available for GE25TXG3E?
- Yes — the GE25TXG3E datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for GE25TXG3E?
- The minimum order quantity is 1.
- Is GE25TXG3E available?
- Yes — GE25TXG3E is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
