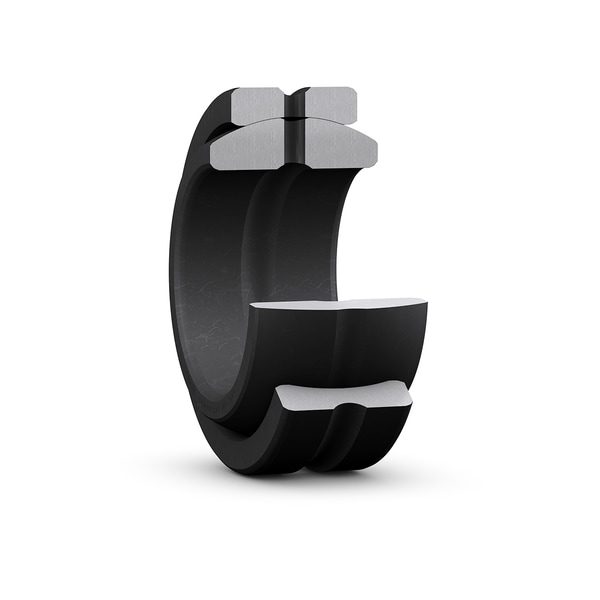

SKF GE15ES Radial spherical plain bearing

SKF GE15ES radial spherical plain bearing. Spherical inner ring sliding in a matched spherical outer bore, providing self-alignment and heavy static / dynamic load capacity in slow oscillating movements (hydraulic cylinder rod ends, marine winch link pins, deck-crane pivots). Steel-on-steel (GE-ES), steel-on-PTFE-composite (GE-2RS), stainless-on-stainless (GE-C), and re-lubrication grooves per suffix. ISO 6124 dimensioned.

Type

Radial spherical plain bearing

Designation

SKF GE15ES

HS code

8483.30

Bore diameter

15 mm

Outside diameter

26 mm

Width, inner ring

12 mm

Width, outer ring

9 mm

Basic dynamic load rating

17 kN

Basic static load rating

85 kN

Sliding contact surface combination

Steel/steel, standard

Material, inner ring

Bearing steel

Material, outer ring

Bearing steel

Maintenance

Relubrication required

Radial internal clearance

CN

Sealing

Without

Relubrication feature

With

Product net weight

0.0254 kg

eClass code

23-05-01-06

UNSPSC code

31171515

Dimensions (d × D × B)

15 × 26 mm

Standard

SKF designation convention (see description for governing ISO / DIN)

Material

As declared by SKF designation suffix

Temperature Range

Per SKF product data

HS Code

8483.30

• Alt. designation GE 15 ES
