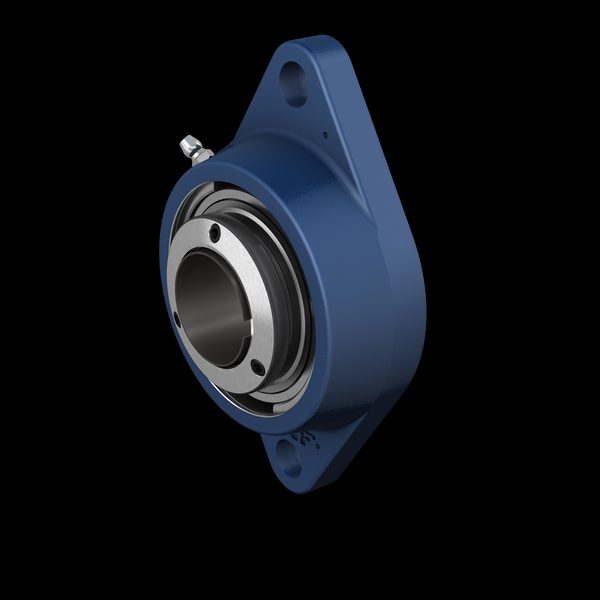

SKF FYTB40LF Flanged ball bearing unit (UCF / UCFC / UCFL)
Pricing
Request a quote
We reply within 24 hours
Product Description
SKF FYTB40LF flanged ball bearing unit (ucf / ucfc / ucfl). Square four-bolt (UCF), round three-bolt (UCFC) or oval two-bolt (UCFL) flanged housing pre-assembled with a spherical-outer-ring insert bearing. Absorbs shaft-to-housing misalignment on assembly. Set-screw shaft attachment on standard UC-series insert; eccentric-collar (UEL) or adapter-sleeve (UK) variants available. Dimensioned to ISO 3228 / DIN 626.
Technical Specifications
- Type
- Flanged ball bearing unit (UCF / UCFC / UCFL)
- Designation
- SKF FYTB40LF
- HS code
- 8483.20
- Shaft diameter
- 40 mm
- Housing overall width
- 38.5 mm
- Width, total
- 50.2 mm
- Centre distance between bolt holes
- 143.5 mm
- Bearing width, total
- 43.1 mm
- Attachment bolt diameter
- 12 mm
- Basic dynamic load rating
- 30.7 kN
- Basic static load rating
- 19 kN
- Limiting speed
- 4800 r/min
- Housing type
- Flanged
- Flanged housing type
- Oval
- Number of bolt holes for fasteners
- 2
- Fastening bolt hole type
- Plain
- Retaining feature, inner ring
- SKF ConCentra
- Bore type
- Cylindrical
- Rubber seating ring
- Without
- Material, housing
- Cast iron
- Material, bearing
- Bearing steel
- Coating
- Without
- Sealing, bearing
- Seal and flinger on both sides
- Sealing type
- Contact, standard
- Sealing, unit
- Optional end cover
- Lubricant
- Grease
- Relubrication hole
- With
- Grease fitting
- With
- Product net weight
- 1.57 kg
- eClass code
- 23-05-08-02
- UNSPSC code
- 31171536
Standards & Compliance
- Standard
- SKF designation convention
- Material
- As declared by SKF designation suffix
- Temperature Range
- Per SKF product data
- HS Code
- 8483.20
Compatibility & Fitment
Interchange with peer OEM equivalents on identical boundary plan and execution — confirm cage, clearance, sealing and precision-class suffix before substitution.
Product Documentation
More from SKF
SKF
SKF PER.15123/245 Single-row tapered roller bearing
SKF
SKF NU18/800ECMA Single-row cylindrical roller bearing (NU / N / NJ / NUP)
SKF
SKF FYTB40TF Flanged ball bearing unit (UCF / UCFC / UCFL)
SKF
SKF PER.15125 Single-row tapered roller bearing
SKF
SKF NU18/900ECMA Single-row cylindrical roller bearing (NU / N / NJ / NUP)
SKF
SKF FYTB40TF/VA201 Flanged ball bearing unit (UCF / UCFC / UCFL)
SKF
SKF PER.15126 Single-row tapered roller bearing
SKF
SKF NU1876ECMP/P63HVQ551 Single-row cylindrical roller bearing (NU / N / NJ / NUP)
Technical guides
Catalogue entry last verified: 2026-08-13. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy FYTB40LF?
- FYTB40LF can be ordered from cballast.com as a SKF catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this SKF product?
- The manufacturer part number is FYTB40LF.
- What is the HS code for FYTB40LF?
- The customs tariff (HS) code for FYTB40LF is 8483.20.
- Who manufactures FYTB40LF?
- FYTB40LF is a SKF product in the Bearings & Power Transmission range.
- Is a datasheet available for FYTB40LF?
- Yes — the FYTB40LF datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for FYTB40LF?
- The minimum order quantity is 1.
- Is FYTB40LF available?
- Yes — FYTB40LF is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
