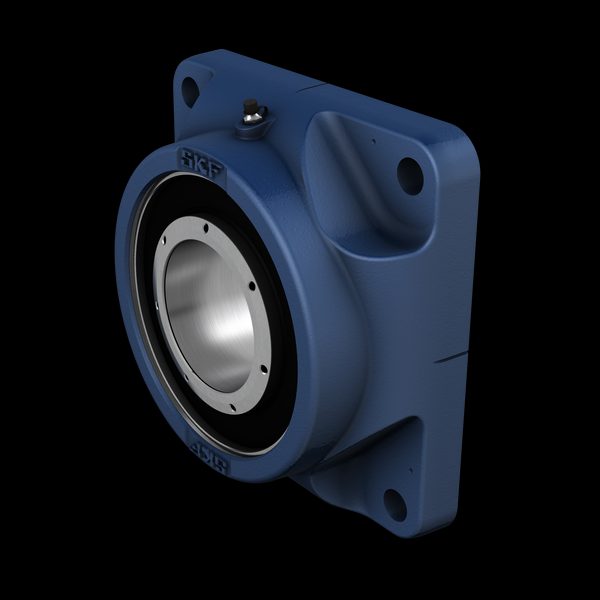

SKF FYNT100F Roller-bearing flanged unit
Pricing
Request a quote
We reply within 24 hours
Product Description
SKF FYNT100F roller-bearing flanged unit. Round or square-flanged cast-iron housing pre-assembled with a spherical roller bearing on adapter sleeve, bolted to a machined face perpendicular to the shaft axis. Four-bolt round (FYNT / FRT) or four-bolt square execution.
Technical Specifications
- Type
- Roller-bearing flanged unit
- Designation
- SKF FYNT100F
- HS code
- 8483.20
- Shaft diameter
- 100 mm
- Housing overall width
- 98 mm
- Width, total
- 98.9 mm
- Centre distance between bolt holes
- 219 mm
- Attachment bolt diameter
- 20 mm
- Bearing width, total
- 89 mm
- Basic dynamic load rating
- 425 kN
- Basic static load rating
- 490 kN
- Limiting speed
- 2000 r/min
- Housing type
- Flanged
- Flanged housing type
- Square
- Number of bolt holes for fasteners
- 4
- Bearing insert
- Spherical roller bearing
- Retaining feature, inner ring
- SKF ConCentra
- Bearing position
- Locating
- Bore type
- Cylindrical
- Material, housing
- Cast iron
- Material, bearing
- Bearing steel
- Coating
- Without
- Bearing housing seal type
- Radial lip seal
- Sealing, unit
- Without
- Lubricant
- Grease
- Relubrication hole
- With
- Grease fitting
- With
- Product net weight
- 23 kg
- eClass code
- 23-05-16-90
- UNSPSC code
- 31171537
Standards & Compliance
- Standard
- SKF designation convention (see description for governing ISO / DIN)
- Material
- As declared by SKF designation suffix
- Temperature Range
- Per SKF product data
- HS Code
- 8483.20
Cross References
- Cooper Split 100
- Dodge 100
- Rexnord 100
- Equivalent: 100 (Cooper Split)
- Equivalent: 100 (Dodge)
- Equivalent: 100 (Rexnord)
Compatibility & Fitment
Interchange with peer OEM equivalents on identical boundary plan and execution — confirm cage, clearance, sealing and precision-class suffix before substitution.
