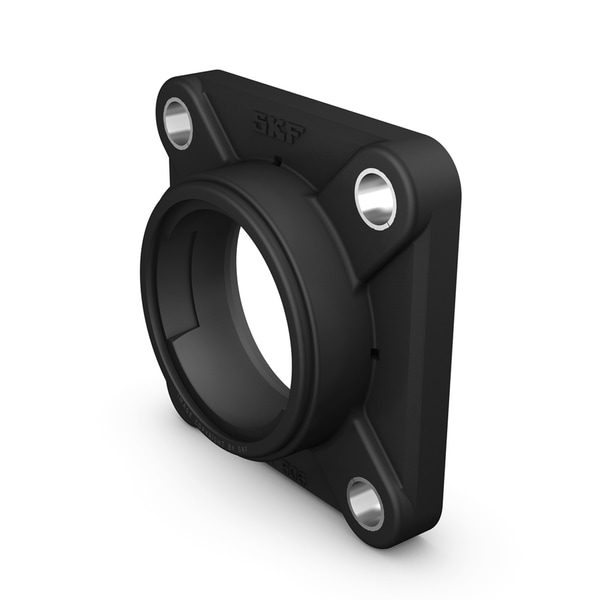

SKF FYK508 Composite flanged housing, square
Pricing
Request a quote
We reply within 24 hours
Product Description
SKF FYK508 flanged ball bearing unit (ucf / ucfc / ucfl). Square four-bolt (UCF), round three-bolt (UCFC) or oval two-bolt (UCFL) flanged housing pre-assembled with a spherical-outer-ring insert bearing. Absorbs shaft-to-housing misalignment on assembly. Set-screw shaft attachment on standard UC-series insert; eccentric-collar (UEL) or adapter-sleeve (UK) variants available. Dimensioned to ISO 3228 / DIN 626.
Technical Specifications
- Type
- Flanged ball bearing unit (UCF / UCFC / UCFL)
- Designation
- SKF FYK508
- Bore d
- 40 mm
- HS code
- 8483.20
- Spherical seating diameter
- 80 mm
- Housing overall width
- 39 mm
- Centre distance between bolt holes
- 101.5 mm
- Housing type
- Flanged
- Flanged housing type
- Square
- Number of bolt holes for fasteners
- 4
- Fastening bolt hole type
- Plain
- Material, housing
- Composite
- Coating
- Without
- Relubrication hole
- Without
- Grease fitting
- Without
- Product net weight
- 0.301 kg
- eClass code
- 23-05-08-02
- UNSPSC code
- 31171536
Standards & Compliance
- Standard
- SKF designation convention
- Material
- As declared by SKF designation suffix
- Temperature Range
- Per SKF product data
- HS Code
- 8483.20
Cross References
- NTN 508
- NSK 508
- FAG 508
- Koyo 508
- ASAHI 508
- Alt. designation FYK 508
- Equivalent: 508 (NTN)
- Equivalent: 508 (NSK)
- Equivalent: 508 (FAG)
- Equivalent: 508 (Koyo)
- Equivalent: 508 (ASAHI)
Compatibility & Fitment
Interchange with peer OEM equivalents on identical boundary plan and execution — confirm cage, clearance, sealing and precision-class suffix before substitution.
