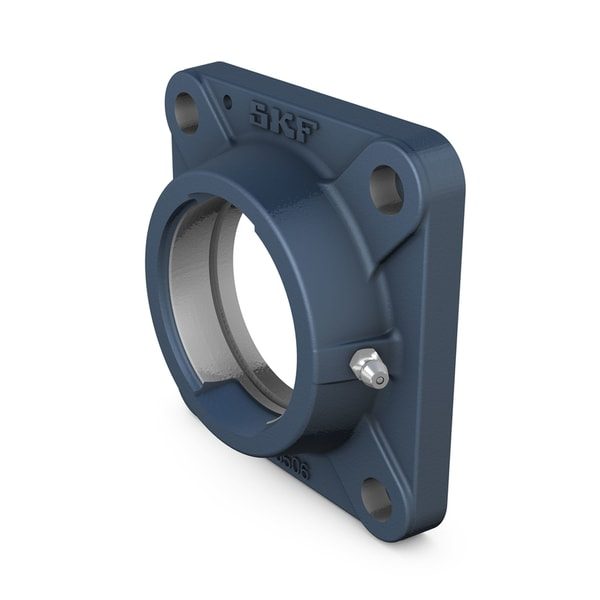

SKF FYJ520 Flanged ball bearing unit (UCF / UCFC / UCFL)
Pricing
Request a quote
We reply within 24 hours
Product Description
SKF FYJ520 flanged ball bearing unit (ucf / ucfc / ucfl). Square four-bolt (UCF), round three-bolt (UCFC) or oval two-bolt (UCFL) flanged housing pre-assembled with a spherical-outer-ring insert bearing. Absorbs shaft-to-housing misalignment on assembly. Set-screw shaft attachment on standard UC-series insert; eccentric-collar (UEL) or adapter-sleeve (UK) variants available. Dimensioned to ISO 3228 / DIN 626.
Technical Specifications
- Type
- Flanged ball bearing unit (UCF / UCFC / UCFL)
- Designation
- SKF FYJ520
- Bore d
- 100 mm
- HS code
- 8483.20
- Spherical seating diameter
- 180 mm
- Housing overall width
- 70 mm
- Centre distance between bolt holes
- 210 mm
- Housing type
- Flanged
- Flanged housing type
- Square
- Number of bolt holes for fasteners
- 4
- Fastening bolt hole type
- Plain
- Material, housing
- Cast iron
- Coating
- Without
- Relubrication hole
- With
- Grease fitting
- With
- Product net weight
- 8.8 kg
- eClass code
- 23-05-16-02
- UNSPSC code
- 31171536
Standards & Compliance
- Standard
- SKF designation convention
- Material
- As declared by SKF designation suffix
- Temperature Range
- Per SKF product data
- HS Code
- 8483.20
Cross References
- NTN 520
- NSK 520
- FAG 520
- Koyo 520
- ASAHI 520
- Equivalent: 520 (NTN)
- Equivalent: 520 (NSK)
- Equivalent: 520 (FAG)
- Equivalent: 520 (Koyo)
- Equivalent: 520 (ASAHI)
Compatibility & Fitment
Interchange with peer OEM equivalents on identical boundary plan and execution — confirm cage, clearance, sealing and precision-class suffix before substitution.
