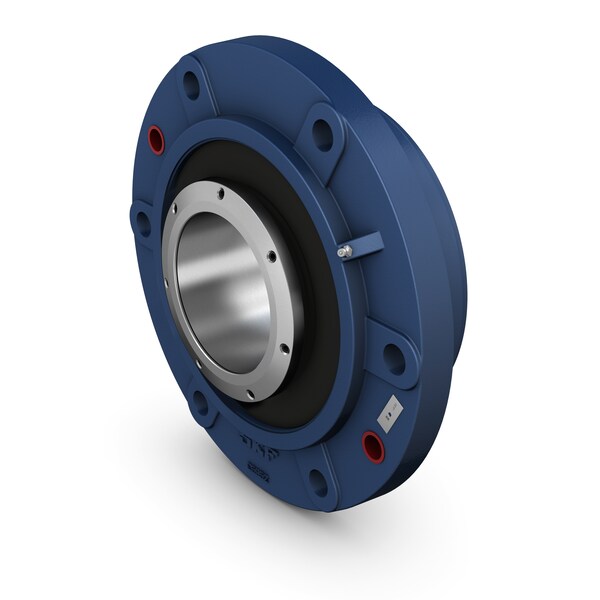

SKF F6BRP415-SRB-CRE Roller-bearing flanged unit
Pricing
Request a quote
We reply within 24 hours
Product Description
SKF F6BRP415-SRB-CRE roller-bearing flanged unit. Round or square-flanged cast-iron housing pre-assembled with a spherical roller bearing on adapter sleeve, bolted to a machined face perpendicular to the shaft axis. Four-bolt round (FYNT / FRT) or four-bolt square execution.
Technical Specifications
- Type
- Roller-bearing flanged unit
- Designation
- SKF F6BRP415-SRB-CRE
- HS code
- 8483.20
- Shaft diameter
- 125.4 mm
- Hub diameter
- 279.4 mm
- Housing overall width
- 109.538 mm
- Width, total
- 116.681 mm
- Attachment bolt diameter
- 22.225 mm
- Pitch diameter of bolt holes of round and triangle flange type housing
- 323.85 mm
- Bearing width, total
- 116.681 mm
- Basic dynamic load rating
- 758 kN
- Basic static load rating
- 930 kN
- Limiting speed
- 1550 r/min
- Housing type
- Flanged
- Flanged housing type
- Round, piloted
- Number of bolt holes for fasteners
- 6
- Bearing insert
- Spherical roller bearing
- Retaining feature, inner ring
- SKF ConCentra
- Bearing position
- Non-locating
- Bore type
- Cylindrical
- Material, housing
- Cast iron
- Material, bearing
- Bearing steel
- Coating
- Without
- Bearing housing seal type
- Radial lip seal
- Sealing, unit
- Optional end cover
- Lubricant
- Grease
- Relubrication hole
- With
- Grease fitting
- With
- Product net weight
- 42.8 kg
- eClass code
- 23-05-16-90
- UNSPSC code
- 31171537
Standards & Compliance
- Standard
- SKF designation convention (see description for governing ISO / DIN)
- Material
- As declared by SKF designation suffix
- Temperature Range
- Per SKF product data
- HS Code
- 8483.20
Cross References
- Cooper Split 6415
- Dodge 6415
- Rexnord 6415
- Equivalent: 6415 (Cooper Split)
- Equivalent: 6415 (Dodge)
- Equivalent: 6415 (Rexnord)
Compatibility & Fitment
Interchange with peer OEM equivalents on identical boundary plan and execution — confirm cage, clearance, sealing and precision-class suffix before substitution.
