SKF EE243196/243250/HA2 Single-row tapered roller bearing
Pricing
Request a quote
We reply within 24 hours
Product Description
SKF EE243196/243250/HA2 single-row tapered roller bearing. Single-row tapered roller bearing designed to take combined heavy radial and one-direction axial load. Cone (inner ring), cup (outer ring) and rollers converge at a common apex on the bearing axis. Two bearings are always mounted in opposition. Metric dimensions per ISO 355; imperial to ANSI/ABMA 19.1.
Technical Specifications
- Type
- Single-row tapered roller bearing
- Designation
- SKF EE243196/243250/HA2
- HS code
- 8482.20
- Bore diameter
- 498.475 mm
- Outside diameter
- 634.873 mm
- Width, total
- 80.963 mm
- Width, inner ring
- 80.963 mm
- Width, outer ring
- 63.5 mm
- Contact angle
- 12.9 °
- Basic dynamic load rating
- 1470 kN
- Basic static load rating
- 3650 kN
- Reference speed
- 600 r/min
- Limiting speed
- 850 r/min
- Bearing part
- Complete bearing
- Number of rows
- 1
- Locating feature, bearing outer ring
- Without
- Bore type
- Cylindrical
- Cage
- Sheet metal
- Arrangement of contact angle (double-row bearing)
- Not applicable
- Matched arrangement
- No
- Coating
- Without
- Sealing
- Without
- Lubricant
- None
- Relubrication feature
- Without
- Unit system
- Inch
- Candidate for remanufacturing
- Yes
- Indicative carbon footprint for new product
- 222 kg CO2e
- Indicative carbon footprint for remanufactured product
- 73.7 kg CO2e
- Product net weight
- 59.9 kg
- eClass code
- 23-05-09-10
Standards & Compliance
- Standard
- SKF designation convention
- Material
- As declared by SKF designation suffix
- Temperature Range
- Per SKF product data
- HS Code
- 8482.20
Cross References
- Timken 2431962432502
- NSK 2431962432502
- NTN 2431962432502
- FAG 2431962432502
- Koyo 2431962432502
- Equivalent: 2431962432502 (Timken)
- Equivalent: 2431962432502 (NSK)
- Equivalent: 2431962432502 (NTN)
- Equivalent: 2431962432502 (FAG)
- Equivalent: 2431962432502 (Koyo)
Compatibility & Fitment
Interchange with peer OEM equivalents on identical boundary plan and execution — confirm cage, clearance, sealing and precision-class suffix before substitution.
Product Documentation
More from SKF
SKF
SKF NJ304ECP Single-row cylindrical roller bearing (NU / N / NJ / NUP)
SKF
SKF FY1.TF/VA228 Flanged ball bearing unit (UCF / UCFC / UCFL)
SKF
SKF SY50FM Pillow block ball bearing unit (UCP / UEP / UKP)
SKF
SKF EE763330/763410 Single-row tapered roller bearing
SKF
SKF NJ304ECP/C3 Single-row cylindrical roller bearing (NU / N / NJ / NUP)
SKF
SKF FY1.WF Flanged ball bearing unit (UCF / UCFC / UCFL)
SKF

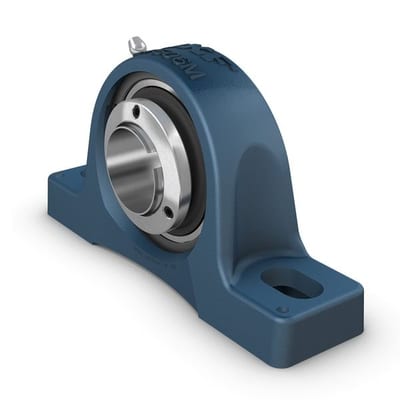

SKF SY50LF Pillow block ball bearing unit (UCP / UEP / UKP)
