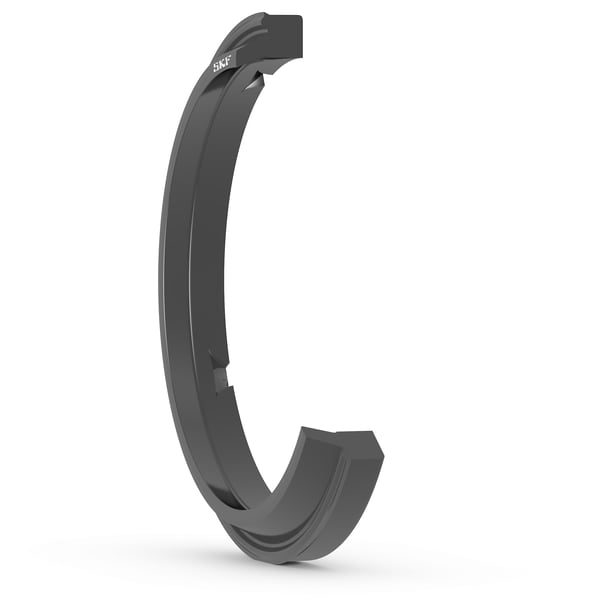

SKF DTW-1625-J2G Hydraulic rod wiper seal
Pricing
Request a quote
We reply within 24 hours
Product Description
SKF DTW-1625-J2G hydraulic rod wiper seal. Hydraulic cylinder wiper (scraper) seal — sits at the rod-side gland outboard of the primary rod seal to sweep debris, ice, salt spray and paint chips off the rod on the retract stroke. Metal-cased or all-polyurethane execution. Fits DIN 6210 / ISO 6194 wiper groove.
Technical Specifications
- Type
- Hydraulic rod wiper seal
- Designation
- SKF DTW-1625-J2G
- HS code
- 4016.93
- Rod diameter
- 41.28 mm
- Housing groove bore diameter
- 50.72 mm
- Housing groove width
- 4.75 mm
- Bore type
- Snap-in wiper seal
- Design
- DTW
- Sealing lip material
- Polyurethane (TPU U-1003)
- Product net weight
- 0.004 kg
- eClass code
- 23-07-01-90
- UNSPSC code
- 31181602
Standards & Compliance
- Standard
- SKF designation convention (see description for governing ISO / DIN)
- Material
- As declared by SKF designation suffix
- Temperature Range
- Per SKF product data
- HS Code
- 4016.93
Cross References
- Trelleborg 16252
- Parker 16252
- Freudenberg 16252
- Hallite 16252
- Equivalent: 16252 (Trelleborg)
- Equivalent: 16252 (Parker)
- Equivalent: 16252 (Freudenberg)
- Equivalent: 16252 (Hallite)
Compatibility & Fitment
Interchange with peer OEM equivalents on identical boundary plan and execution — confirm cage, clearance, sealing and precision-class suffix before substitution.
