Product Description

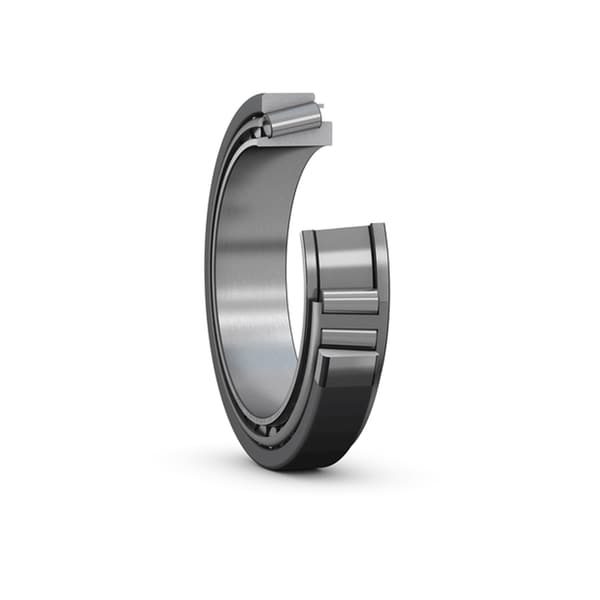

SKF BT1-1619 single-row tapered roller bearing. Single-row tapered roller bearing designed to take combined heavy radial and one-direction axial load. Cone (inner ring), cup (outer ring) and rollers converge at a common apex on the bearing axis. Two bearings are always mounted in opposition. Metric dimensions per ISO 355; imperial to ANSI/ABMA 19.1.
Technical Specifications
- Type
- Single-row tapered roller bearing
- Designation
- SKF BT1-1619
- HS code
- 8482.20
- Bore diameter
- 70 mm
- Outside diameter
- 130 mm
- Width, total
- 57 mm
- Width, inner ring
- 56 mm
- Width, outer ring
- 35 mm
- Contact angle
- 12.5 °
- Basic dynamic load rating
- 280 kN
- Basic static load rating
- 310 kN
- Reference speed
- 4000 r/min
- Limiting speed
- 5000 r/min
- SKF performance class
- SKF Explorer
- Bearing part
- Complete bearing
- Number of rows
- 1
- Locating feature, bearing outer ring
- Without
- Bore type
- Cylindrical
- Arrangement of contact angle (double-row bearing)
- Not applicable
- Matched arrangement
- No
- Coating
- Without
- Sealing
- Without
- Lubricant
- None
- Relubrication feature
- Without
- Unit system
- Metric
- Indicative carbon footprint for new product
- 10.1 kg CO2e
- Product net weight
- 2.73 kg
- eClass code
- 23-05-09-10
- UNSPSC code
- 31171516
Standards & Compliance
- Standard
- SKF designation convention
- Material
- As declared by SKF designation suffix
- Temperature Range
- Per SKF product data
- HS Code
- 8482.20
Cross References
- Timken 11619
- NSK 11619
- NTN 11619
- FAG 11619
- Koyo 11619
- Equivalent: 11619 (Timken)
- Equivalent: 11619 (NSK)
- Equivalent: 11619 (NTN)
- Equivalent: 11619 (FAG)
- Equivalent: 11619 (Koyo)
Compatibility & Fitment
Interchange with peer OEM equivalents on identical boundary plan and execution — confirm cage, clearance, sealing and precision-class suffix before substitution.
Product Documentation
More from SKF
SKF
SKF NJ240ECML Single-row cylindrical roller bearing (NU / N / NJ / NUP)
SKF
SKF FY1.3/16TF Flanged ball bearing unit (UCF / UCFC / UCFL)
SKF

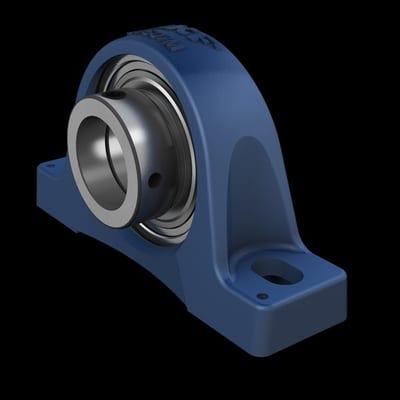

SKF SY40WDW Pillow block ball bearing unit (UCP / UEP / UKP)
