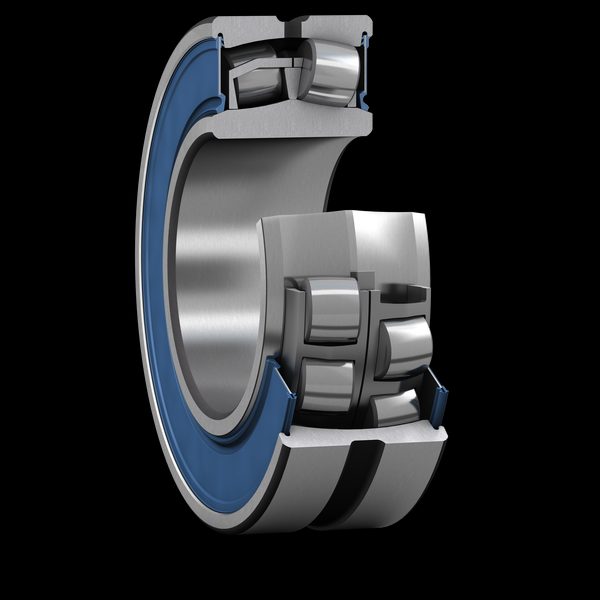

SKF BS2-2211-2RS/GFP9VA944 Spherical roller bearing
Pricing
Request a quote
We reply within 24 hours
Product Description
SKF BS2-2211-2RS/GFP9VA944 spherical roller bearing. Self-aligning double-row spherical roller bearing designed for very heavy radial load with concurrent axial load in either direction, and inherent tolerance for shaft-to-housing misalignment. Two rows of symmetrical rollers ride on a common concave outer-ring raceway. Common execution suffixes cover CC (window-type cage), CA (machined brass cage), EK (tapered bore for adapter-sleeve mount), and W33 (annular groove and three lubrication holes in outer ring). Manufactured to ISO 492 Class Normal / P6. Bore diameter d = 220 mm per ISO 15.
Technical Specifications
- Type
- Spherical roller bearing
- Designation
- SKF BS2-2211-2RS/GFP9VA944
- Standard
- ISO 15 / DIN 623 dimension plan; ISO 492 Class Normal precision
- HS code
- 8482.20
- Bore diameter
- 55 mm
- Outside diameter
- 100 mm
- Width
- 31 mm
- Basic dynamic load rating
- 129 kN
- Basic static load rating
- 127 kN
- Limiting speed
- 390 r/min
- SKF performance class
- SKF Explorer
- Number of rows
- 2
- Locating feature, bearing outer ring
- Without
- Bore type
- Cylindrical
- Cage
- Sheet metal
- Radial internal clearance
- CN
- Tolerance class for dimensions
- Normal
- Tolerance class for run-out
- P5
- Sealing
- Seal on both sides
- Sealing type
- Contact
- Lubricant
- Food grade grease
- Relubrication feature
- With
- Indicative carbon footprint for new product
- 3.5 kg CO2e
- Product net weight
- 0.943 kg
- eClass code
- 23-05-09-11
- UNSPSC code
- 31171510
Standards & Compliance
- Standard
- ISO 15 / ISO 492 / DIN 623
- Material
- Bearing steel — 100Cr6 (through-hardened) or SNR-nitrided; cage as declared by suffix
- Temperature Range
- -30 to +120 °C standard grease
- HS Code
- 8482.20
Cross References
- Timken 2221129944
- NSK 2221129944
- NTN 2221129944
- FAG 2221129944
- Koyo 2221129944
- Equivalent: 2221129944 (Timken)
- Equivalent: 2221129944 (NSK)
- Equivalent: 2221129944 (NTN)
- Equivalent: 2221129944 (FAG)
- Equivalent: 2221129944 (Koyo)
Compatibility & Fitment
ISO 15 boundary-plan interchange — the numeric bore-code block is portable across every ISO 15 bearing manufacturer (SKF, Timken, NSK, NTN, FAG, Koyo, NACHI). Confirm suffix compatibility on cage, seal, clearance and precision class before substitution.
