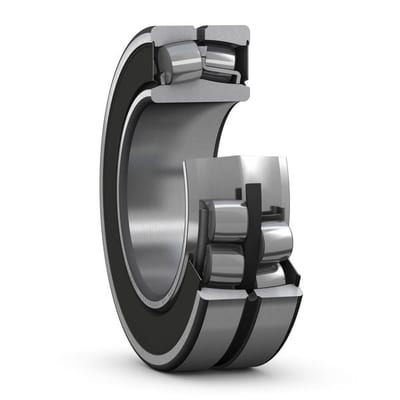

SKF BS2-2208-2RS5/C4GEM9 Spherical roller bearing

SKF BS2-2208-2RS5/C4GEM9 spherical roller bearing. Self-aligning double-row spherical roller bearing designed for very heavy radial load with concurrent axial load in either direction, and inherent tolerance for shaft-to-housing misalignment. Two rows of symmetrical rollers ride on a common concave outer-ring raceway. Common execution suffixes cover CC (window-type cage), CA (machined brass cage), EK (tapered bore for adapter-sleeve mount), and W33 (annular groove and three lubrication holes in outer ring). Manufactured to ISO 492 Class Normal / P6.

Type

Spherical roller bearing

Designation

SKF BS2-2208-2RS5/C4GEM9

Standard

ISO 15 / DIN 623 dimension plan; ISO 492 Class Normal precision

HS code

8482.20

Bore diameter

40 mm

Outside diameter

80 mm

Width

28 mm

Basic dynamic load rating

98.5 kN

Basic static load rating

91.5 kN

SKF performance class

SKF Explorer

Number of rows

2

Locating feature, bearing outer ring

Without

Bore type

Cylindrical

Cage

Sheet metal

Radial internal clearance

C4

Tolerance class for dimensions

Normal

Tolerance class for run-out

P5

Sealing

Seal on both sides

Sealing type

Contact

Lubricant

Grease

Relubrication feature

With

Indicative carbon footprint for new product

2.2 kg CO2e

Product net weight

0.599 kg

eClass code

23-05-09-11

UNSPSC code

31171510

Standard

ISO 15 / ISO 492 / DIN 623

Material

Bearing steel — 100Cr6 (through-hardened) or SNR-nitrided; cage as declared by suffix

Temperature Range

-30 to +120 °C standard grease

HS Code

8482.20
