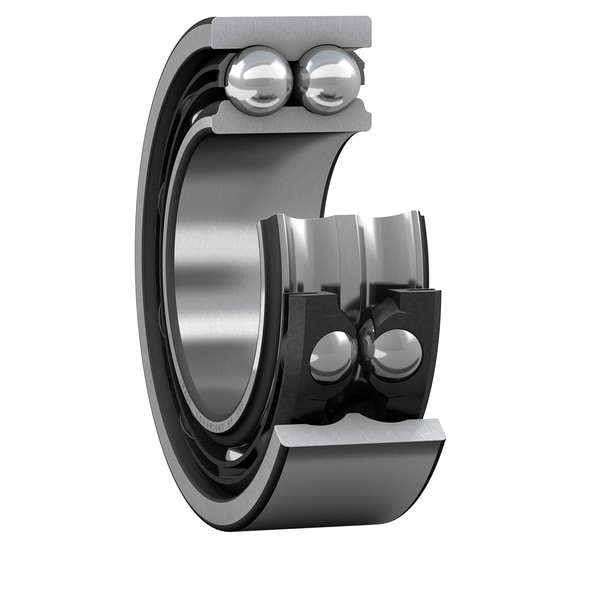

SKF BA2B636039A Double-row angular contact ball bearing

SKF BA2B636039A double-row angular contact ball bearing. Double-row angular contact ball bearing (32xx-2Z, 33xx, 52xx / 53xx) taking heavy combined radial and axial load in both directions from a single position. Contact angle 30° or 45°. Standard shielded (2Z) or contact-sealed (2RS1) execution. Suitable for pump impeller shafts, gearbox output shafts, propeller-shaft thrust ends on smaller marine gearboxes.

Type

Double-row angular contact ball bearing

Designation

SKF BA2B636039A

HS code

8482.10

Bore diameter

50 mm

Outside diameter

96 mm

Width

30.2 mm

Contact angle

20 °

Basic dynamic load rating

67.6 kN

Basic static load rating

55 kN

Reference speed

7000 r/min

Limiting speed

6000 r/min

Contact type

Normal contact (two-point contact)

Number of rows

2

Locating feature, bearing outer ring

Snap ring groove

Ring type

One-piece inner and outer rings

Arrangement of contact angle (double-row bearing)

Back-to-back (O)

Matched arrangement

No

Universal matching bearing

No

Material, bearing

Bearing steel

Coating

Without

Sealing

Without

Lubricant

None

Relubrication feature

Without

Indicative carbon footprint for new product

3.2 kg CO2e

Product net weight

0.855 kg

eClass code

23-05-08-03

UNSPSC code

31171531

Standard

SKF designation convention (see description for governing ISO / DIN)

Material

As declared by SKF designation suffix

Temperature Range

Per SKF product data

HS Code

8482.10

• FAG 2636039
• NSK 2636039
• NTN 2636039
• Timken 2636039
• Koyo 2636039
• Equivalent: 2636039 (FAG)
• Equivalent: 2636039 (NSK)
• Equivalent: 2636039 (NTN)
• Equivalent: 2636039 (Timken)
• Equivalent: 2636039 (Koyo)
