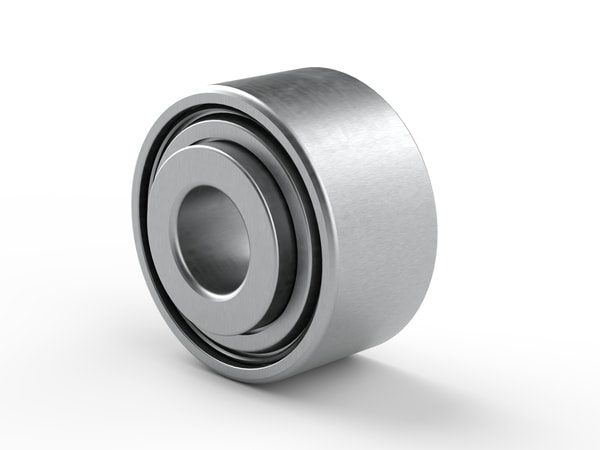

SKF AGHB2047-S100 Double-row angular contact ball bearing
Pricing
Request a quote
We reply within 24 hours
Product Description
SKF AGHB2047-S100 double-row angular contact ball bearing. Double-row angular contact ball bearing (32xx-2Z, 33xx, 52xx / 53xx) taking heavy combined radial and axial load in both directions from a single position. Contact angle 30° or 45°. Standard shielded (2Z) or contact-sealed (2RS1) execution. Suitable for pump impeller shafts, gearbox output shafts, propeller-shaft thrust ends on smaller marine gearboxes.
Technical Specifications
- Type
- Double-row angular contact ball bearing
- Designation
- SKF AGHB2047-S100
- HS code
- 8482.10
- Bore diameter
- 20 mm
- Outside diameter
- 47 mm
- Width
- 26 mm
- Basic dynamic load rating
- 19.1 kN
- Basic static load rating
- 12.2 kN
- Number of rows
- 2
- Sealing
- Seal on both sides
- Sealing type
- Contact
- Lubricant
- Grease
- Indicative carbon footprint for new product
- 0.74 kg CO2e
- Product net weight
- 0.2 kg
Standards & Compliance
- Standard
- SKF designation convention (see description for governing ISO / DIN)
- Material
- As declared by SKF designation suffix
- Temperature Range
- Per SKF product data
- HS Code
- 8482.10
Cross References
- FAG 2047100
- NSK 2047100
- NTN 2047100
- Timken 2047100
- Koyo 2047100
- Equivalent: 2047100 (FAG)
- Equivalent: 2047100 (NSK)
- Equivalent: 2047100 (NTN)
- Equivalent: 2047100 (Timken)
- Equivalent: 2047100 (Koyo)
Compatibility & Fitment
Interchange with peer OEM equivalents on identical boundary plan and execution — confirm cage, clearance, sealing and precision-class suffix before substitution.
