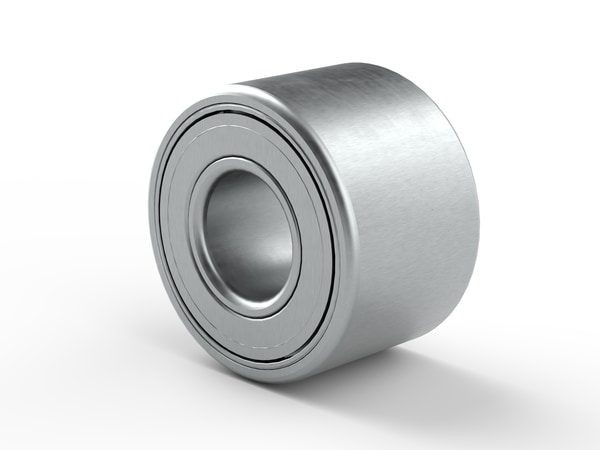

SKF AGHB2047-002-S100 Double-row angular contact ball bearing
Pricing
Request a quote
We reply within 24 hours
Product Description
SKF AGHB2047-002-S100 double-row angular contact ball bearing. Double-row angular contact ball bearing (32xx-2Z, 33xx, 52xx / 53xx) taking heavy combined radial and axial load in both directions from a single position. Contact angle 30° or 45°. Standard shielded (2Z) or contact-sealed (2RS1) execution. Suitable for pump impeller shafts, gearbox output shafts, propeller-shaft thrust ends on smaller marine gearboxes.
Technical Specifications
- Type
- Double-row angular contact ball bearing
- Designation
- SKF AGHB2047-002-S100
- HS code
- 8482.10
- Bore diameter
- 20 mm
- Outside diameter
- 47 mm
- Width
- 30 mm
- Basic dynamic load rating
- 19.1 kN
- Basic static load rating
- 12.2 kN
- Number of rows
- 2
- Sealing
- Seal on both sides
- Sealing type
- Contact
- Lubricant
- Grease
- Indicative carbon footprint for new product
- 0.74 kg CO2e
- Product net weight
- 0.2 kg
Standards & Compliance
- Standard
- SKF designation convention (see description for governing ISO / DIN)
- Material
- As declared by SKF designation suffix
- Temperature Range
- Per SKF product data
- HS Code
- 8482.10
Cross References
- FAG 2047002100
- NSK 2047002100
- NTN 2047002100
- Timken 2047002100
- Koyo 2047002100
- Equivalent: 2047002100 (FAG)
- Equivalent: 2047002100 (NSK)
- Equivalent: 2047002100 (NTN)
- Equivalent: 2047002100 (Timken)
- Equivalent: 2047002100 (Koyo)
Compatibility & Fitment
Interchange with peer OEM equivalents on identical boundary plan and execution — confirm cage, clearance, sealing and precision-class suffix before substitution.
Product Documentation
More from SKF
SKF
SKF ETS38 Bearing housing accessory
SKF
SKF GEZH312ES Radial spherical plain bearing
SKF
SKF PA85X95X7X10 Hydraulic rod wiper seal
SKF
SKF 7007CE/HCP4ADGA Super-precision angular contact ball bearing
SKF
SKF LTP-218-E3R Hydraulic piston seal
SKF
SKF LOR659 Split pillow-block housing (SNL / SAF / SAW)
SKF
SKF PTB-30X38X8.8-J1S Hydraulic rod seal / buffer seal
SKF
SKF F4BRP307-SRB-CLE Roller-bearing flanged unit
Technical guides
- Angular Contact Ball Bearing Finder — by Bore and Series (72, 73, 70, 718/719 Super-Precision, Double Row 32/33, QJ Four-Point) SKF
- SKF 81xxx Cylindrical Roller Thrust Bearing — Dimensions, Load Ratings & Interchange (81102 to 81140)
- SKF Deep Groove Ball Bearing Reference — 6000 / 6200 / 6300 / 6400 Series (Dimensions, Load Ratings, Interchange to FAG NSK NTN Timken)
Catalogue entry last verified: 2026-08-13. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy AGHB2047-002-S100?
- AGHB2047-002-S100 can be ordered from cballast.com as a SKF catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this SKF product?
- The manufacturer part number is AGHB2047-002-S100.
- What is the HS code for AGHB2047-002-S100?
- The customs tariff (HS) code for AGHB2047-002-S100 is 8482.10.
- Who manufactures AGHB2047-002-S100?
- AGHB2047-002-S100 is a SKF product in the Bearings & Power Transmission range.
- Is a datasheet available for AGHB2047-002-S100?
- Yes — the AGHB2047-002-S100 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for AGHB2047-002-S100?
- The minimum order quantity is 1.
- Is AGHB2047-002-S100 available?
- Yes — AGHB2047-002-S100 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
