SKF 9409 CR / HMS / HMSA radial shaft seal
Pricing
Request a quote
We reply within 24 hours
Product Description
SKF 9409 cr / hms / hmsa radial shaft seal. SKF radial shaft seal for rotating-shaft primary containment against dust, splash and low-head oil pressure. Designation CR / HMS5 / HMSA10 / HMSA10RG (single lip, single lip with dust lip, double lip with garter spring). Elastomer standard nitrile (NBR) to ISO 6194-1 with metal case; hydrogenated nitrile (HNBR), fluoroelastomer (FKM / Viton), silicone (VMQ) and polyacrylate (ACM) available by suffix. Bore, outside diameter and width follow ISO 6194 / DIN 3760.
Technical Specifications
- Type
- CR / HMS / HMSA radial shaft seal Designation: SKF 9409 HS code: 4016.93 Shaft diameter: 23.83 mm Housing bore diameter: 46.43 mm Seal width: 6.35 mm Limiting speed: 3900 r/min Maximum operating temperature: 100 °C minimum operating temperature: -40 °C Permissible circumferential speed: 4.8 m/s Rotational speed: 3900 r/min Design: CRW1 Auxiliary lip: No Sealing lip material: Nitrile rubber (NBR) Type of outside diameter: Metal-cased with sealant coating on the outside diameter Unit system: Inch Product net weight: 0.0113 kg eClass code: 23-07-08-01 UNSPSC code: 31181602
Standards & Compliance
- Standard
- SKF designation convention (see description for governing ISO / DIN)
- Material
- As declared by SKF designation suffix
- Temperature Range
- Per SKF product data
- HS Code
- 4016.93
Cross References
- Freudenberg 9409
- Trelleborg 9409
- Chesterton 9409
- Garlock 9409
- National 9409
- Equivalent: 9409 (Freudenberg)
- Equivalent: 9409 (Trelleborg)
- Equivalent: 9409 (Chesterton)
- Equivalent: 9409 (Garlock)
- Equivalent: 9409 (National)
Compatibility & Fitment
Interchange with peer OEM equivalents on identical boundary plan and execution — confirm cage, clearance, sealing and precision-class suffix before substitution.
Product Documentation
More from SKF
SKF
SKF S7014FEGA/HCP4A Super-precision angular contact ball bearing
SKF
SKF PHGS5M-525-S440 Timing belt (synchronous drive belt)
SKF
SKF 95048 CR / HMS / HMSA radial shaft seal
SKF
SKF S7014FEGB/P4A Super-precision angular contact ball bearing
SKF
SKF PHGS5M-560-25 Timing belt (synchronous drive belt)
SKF

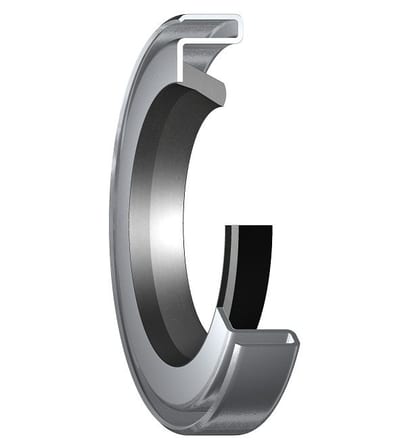

SKF 95052 CR / HMS / HMSA radial shaft seal
SKF

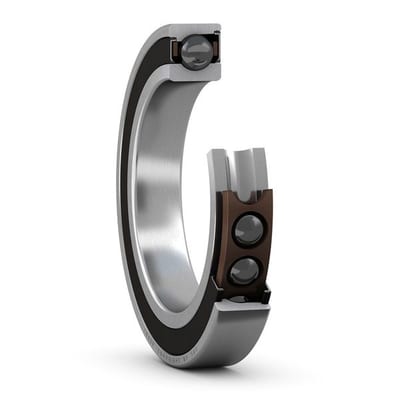

SKF S7015ACD/HCP4A Super-precision angular contact ball bearing
