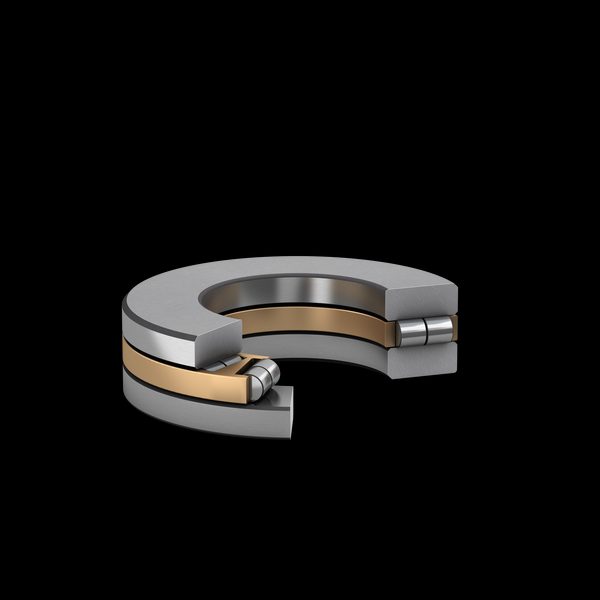

SKF 89438M Cylindrical roller thrust bearing (81XXX)
Pricing
Request a quote
We reply within 24 hours
Product Description
SKF 89438M cylindrical roller thrust bearing (81xxx). Single-direction thrust bearing with cylindrical rollers between two flat washers — high axial-load capacity with excellent shock tolerance. Series 811 (light) / 812 (medium) per ISO 104. Suitable for hydraulic-cylinder end-load bearings, screw-press thrust locations, marine winch drum-thrust bearings.
Technical Specifications
- Type
- Cylindrical roller thrust bearing (81xxx) Designation: SKF 89438M Bore d: 190 mm HS code: 8482.20 Bore diameter: 190 mm Outside diameter: 380 mm Height: 115 mm Basic dynamic load rating: 1960 kN Basic static load rating: 9000 kN Reference speed: 380 r/min Limiting speed: 750 r/min Bearing part: Complete bearing Axial load capability: Single-direction Number of rows: 2 Cage: Machined brass Tolerance class: Normal material, bearing: Bearing steel Coating: Without Indicative carbon footprint for new product: 231 kg CO2e Product net weight: 62.5 kg UNSPSC code: 31171505
Standards & Compliance
- Standard
- SKF designation convention
- Material
- As declared by SKF designation suffix
- Temperature Range
- Per SKF product data
- HS Code
- 8482.20
Cross References
- FAG 89438
- NSK 89438
- NTN 89438
- Timken 89438
- Koyo 89438
- Equivalent: 89438 (FAG)
- Equivalent: 89438 (NSK)
- Equivalent: 89438 (NTN)
- Equivalent: 89438 (Timken)
- Equivalent: 89438 (Koyo)
Compatibility & Fitment
Interchange with peer OEM equivalents on identical boundary plan and execution — confirm cage, clearance, sealing and precision-class suffix before substitution.
