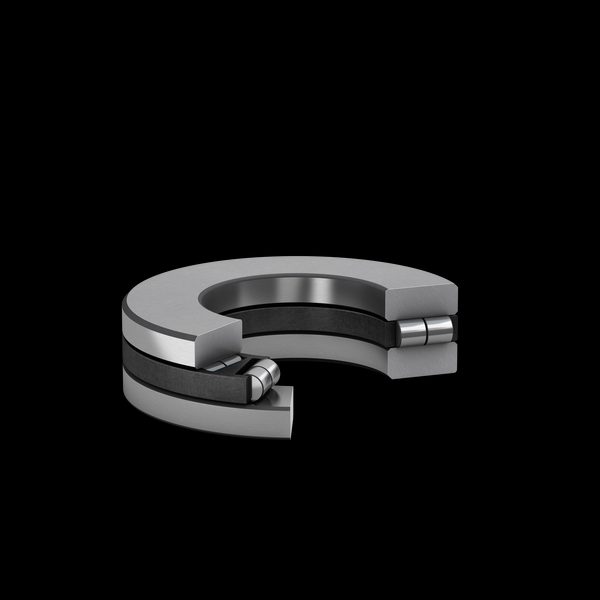

SKF 89308TN Cylindrical roller thrust bearing (81XXX)
Pricing
Request a quote
We reply within 24 hours
Product Description
SKF 89308TN cylindrical roller thrust bearing (81xxx). Single-direction thrust bearing with cylindrical rollers between two flat washers — high axial-load capacity with excellent shock tolerance. Series 811 (light) / 812 (medium) per ISO 104. Suitable for hydraulic-cylinder end-load bearings, screw-press thrust locations, marine winch drum-thrust bearings.
Technical Specifications
- Type
- Cylindrical roller thrust bearing (81xxx) Designation: SKF 89308TN Bore d: 40 mm HS code: 8482.20 Bore diameter: 40 mm Outside diameter: 78 mm Height: 22 mm Basic dynamic load rating: 95 kN Basic static load rating: 365 kN Reference speed: 2000 r/min Limiting speed: 4000 r/min Bearing part: Complete bearing Axial load capability: Single-direction Number of rows: 2 Cage: Non-metallic Tolerance class: Normal material, bearing: Bearing steel Coating: Without Indicative carbon footprint for new product: 1.8 kg CO2e Product net weight: 0.49 kg UNSPSC code: 31171505
Standards & Compliance
- Standard
- SKF designation convention
- Material
- As declared by SKF designation suffix
- Temperature Range
- Per SKF product data
- HS Code
- 8482.20
Cross References
- FAG 89308
- NSK 89308
- NTN 89308
- Timken 89308
- Koyo 89308
- Equivalent: 89308 (FAG)
- Equivalent: 89308 (NSK)
- Equivalent: 89308 (NTN)
- Equivalent: 89308 (Timken)
- Equivalent: 89308 (Koyo)
Compatibility & Fitment
Interchange with peer OEM equivalents on identical boundary plan and execution — confirm cage, clearance, sealing and precision-class suffix before substitution.
Product Documentation
More from SKF
SKF
SKF 99189 SKF Speedi-Sleeve shaft wear sleeve
SKF
SKF AHX3126 Withdrawal sleeve
SKF

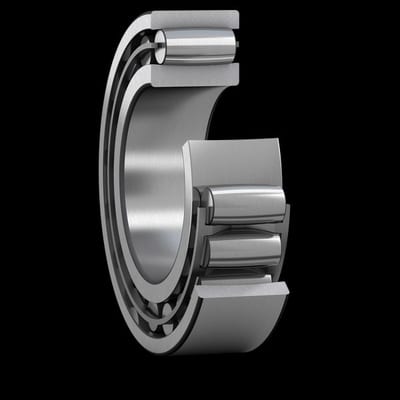

SKF C2244K CARB toroidal roller bearing (C xxxx)
SKF

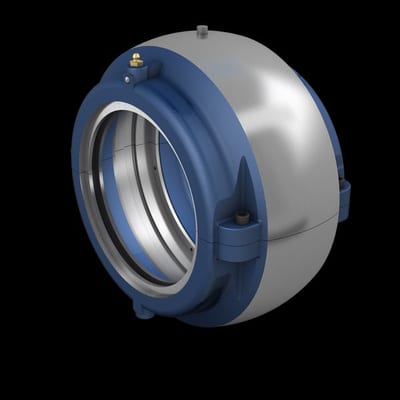

SKF COP.01C8GR Cooper split roller bearing
