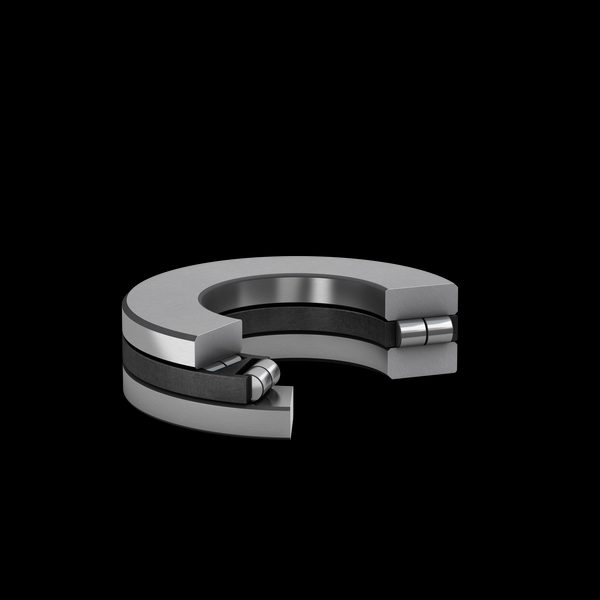

SKF 89306TN Cylindrical roller thrust bearing (81XXX)
Pricing
Request a quote
We reply within 24 hours
Product Description
SKF 89306TN cylindrical roller thrust bearing (81xxx). Single-direction thrust bearing with cylindrical rollers between two flat washers — high axial-load capacity with excellent shock tolerance. Series 811 (light) / 812 (medium) per ISO 104. Suitable for hydraulic-cylinder end-load bearings, screw-press thrust locations, marine winch drum-thrust bearings.
Technical Specifications
- Type
- Cylindrical roller thrust bearing (81xxx) Designation: SKF 89306TN Bore d: 30 mm HS code: 8482.20 Bore diameter: 30 mm Outside diameter: 60 mm Height: 18 mm Basic dynamic load rating: 52 kN Basic static load rating: 183 kN Reference speed: 2600 r/min Limiting speed: 5300 r/min Bearing part: Complete bearing Axial load capability: Single-direction Number of rows: 2 Cage: Non-metallic Tolerance class: Normal material, bearing: Bearing steel Coating: Without Indicative carbon footprint for new product: 0.89 kg CO2e Product net weight: 0.24 kg UNSPSC code: 31171505
Standards & Compliance
- Standard
- SKF designation convention
- Material
- As declared by SKF designation suffix
- Temperature Range
- Per SKF product data
- HS Code
- 8482.20
Cross References
- FAG 89306
- NSK 89306
- NTN 89306
- Timken 89306
- Koyo 89306
- Equivalent: 89306 (FAG)
- Equivalent: 89306 (NSK)
- Equivalent: 89306 (NTN)
- Equivalent: 89306 (Timken)
- Equivalent: 89306 (Koyo)
Compatibility & Fitment
Interchange with peer OEM equivalents on identical boundary plan and execution — confirm cage, clearance, sealing and precision-class suffix before substitution.
Product Documentation
More from SKF
SKF
SKF 99188 SKF Speedi-Sleeve shaft wear sleeve
SKF
SKF AHX3124/110 Withdrawal sleeve
SKF
SKF C2244 CARB toroidal roller bearing (C xxxx)
SKF
SKF COP.01C8EX Cooper split roller bearing
SKF
SKF F2B200-FM Flanged ball bearing unit (UCF / UCFC / UCFL)
SKF
SKF TMFS9 Impact socket for KM lock nuts
SKF
SKF IR300X330X80 Needle roller bearing component (inner ring / cage assembly / individual roller)
SKF
SKF K25X29X17 Needle roller and cage assembly (K / KBK / KZK)
Technical guides
Catalogue entry last verified: 2026-08-30. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy 89306TN?
- 89306TN can be ordered from cballast.com as a SKF catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this SKF product?
- The manufacturer part number is 89306TN.
- What is the HS code for 89306TN?
- The customs tariff (HS) code for 89306TN is 8482.20.
- Who manufactures 89306TN?
- 89306TN is a SKF product in the Bearings & Power Transmission range.
- Is a datasheet available for 89306TN?
- Yes — the 89306TN datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for 89306TN?
- The minimum order quantity is 1.
- Is 89306TN available?
- Yes — 89306TN is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
