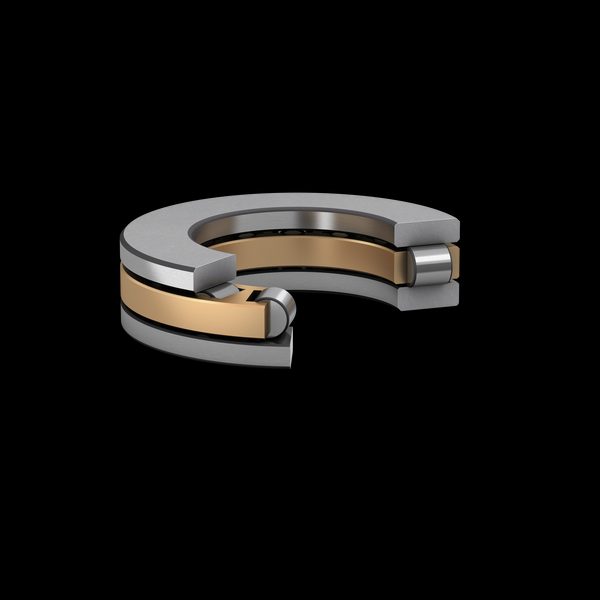

SKF 81296M Cylindrical roller thrust bearing (81XXX)
Pricing
Request a quote
We reply within 24 hours
Product Description
SKF 81296M cylindrical roller thrust bearing (81xxx). Single-direction thrust bearing with cylindrical rollers between two flat washers — high axial-load capacity with excellent shock tolerance. Series 811 (light) / 812 (medium) per ISO 104. Suitable for hydraulic-cylinder end-load bearings, screw-press thrust locations, marine winch drum-thrust bearings.
Technical Specifications
- Type
- Cylindrical roller thrust bearing (81xxx) Designation: SKF 81296M Bore d: 480 mm HS code: 8482.20 Bore diameter: 480 mm Outside diameter: 650 mm Height: 135 mm Basic dynamic load rating: 3350 kN Basic static load rating: 17000 kN Reference speed: 200 r/min Limiting speed: 400 r/min Bearing part: Complete bearing Axial load capability: Single-direction Number of rows: 1 Tolerance class: Normal material, bearing: Bearing steel Coating: Without Indicative carbon footprint for new product: 507 kg CO2e Product net weight: 137 kg eClass code: 23-05-11-01 UNSPSC code: 31171507
Standards & Compliance
- Standard
- SKF designation convention
- Material
- As declared by SKF designation suffix
- Temperature Range
- Per SKF product data
- HS Code
- 8482.20
Cross References
- FAG 81296
- NSK 81296
- NTN 81296
- Timken 81296
- Koyo 81296
- Equivalent: 81296 (FAG)
- Equivalent: 81296 (NSK)
- Equivalent: 81296 (NTN)
- Equivalent: 81296 (Timken)
- Equivalent: 81296 (Koyo)
Compatibility & Fitment
Interchange with peer OEM equivalents on identical boundary plan and execution — confirm cage, clearance, sealing and precision-class suffix before substitution.
Product Documentation
More from SKF
SKF
SKF 99184 SKF Speedi-Sleeve shaft wear sleeve
SKF
SKF AHX3120 Withdrawal sleeve
SKF

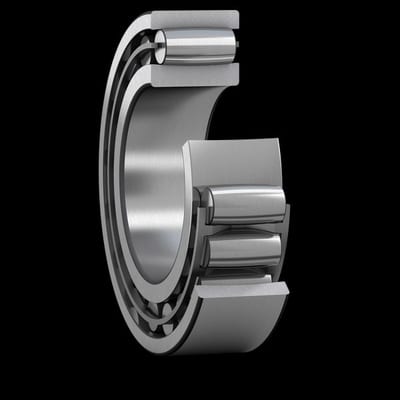

SKF C2234K CARB toroidal roller bearing (C xxxx)
SKF
SKF COP.01C80MEX Cooper split roller bearing
SKF
SKF F2B115-TF Flanged ball bearing unit (UCF / UCFC / UCFL)
SKF
SKF TMFS5 Impact socket for KM lock nuts
SKF
SKF IR280X305X69 Needle roller bearing component (inner ring / cage assembly / individual roller)
SKF
SKF K24X28X17 Needle roller and cage assembly (K / KBK / KZK)
Technical guides
Catalogue entry last verified: 2026-08-30. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy 81296M?
- 81296M can be ordered from cballast.com as a SKF catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this SKF product?
- The manufacturer part number is 81296M.
- What is the HS code for 81296M?
- The customs tariff (HS) code for 81296M is 8482.20.
- Who manufactures 81296M?
- 81296M is a SKF product in the Bearings & Power Transmission range.
- Is a datasheet available for 81296M?
- Yes — the 81296M datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for 81296M?
- The minimum order quantity is 1.
- Is 81296M available?
- Yes — 81296M is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
