SKF 81216TN Cylindrical roller thrust bearing (81XXX)
Pricing
Request a quote
We reply within 24 hours
Product Description
SKF 81216TN cylindrical roller thrust bearing (81xxx). Single-direction thrust bearing with cylindrical rollers between two flat washers — high axial-load capacity with excellent shock tolerance. Series 811 (light) / 812 (medium) per ISO 104. Suitable for hydraulic-cylinder end-load bearings, screw-press thrust locations, marine winch drum-thrust bearings.
Technical Specifications
- Type
- Cylindrical roller thrust bearing (81xxx) Designation: SKF 81216TN Bore d: 80 mm HS code: 8482.20 Bore diameter: 80 mm Outside diameter: 115 mm Height: 28 mm Basic dynamic load rating: 160 kN Basic static load rating: 610 kN Reference speed: 1200 r/min Limiting speed: 2400 r/min Bearing part: Complete bearing Axial load capability: Single-direction Number of rows: 1 Cage: Non-metallic Tolerance class: Normal material, bearing: Bearing steel Coating: Without Indicative carbon footprint for new product: 3.3 kg CO2e Product net weight: 0.9 kg UNSPSC code: 31171505
Standards & Compliance
- Standard
- SKF designation convention
- Material
- As declared by SKF designation suffix
- Temperature Range
- Per SKF product data
- HS Code
- 8482.20
Cross References
- FAG 81216
- NSK 81216
- NTN 81216
- Timken 81216
- Koyo 81216
- Equivalent: 81216 (FAG)
- Equivalent: 81216 (NSK)
- Equivalent: 81216 (NTN)
- Equivalent: 81216 (Timken)
- Equivalent: 81216 (Koyo)
Compatibility & Fitment
Interchange with peer OEM equivalents on identical boundary plan and execution — confirm cage, clearance, sealing and precision-class suffix before substitution.
Product Documentation
More from SKF
SKF
SKF 99159 SKF Speedi-Sleeve shaft wear sleeve
SKF
SKF AHX2315G/V21 Withdrawal sleeve
SKF

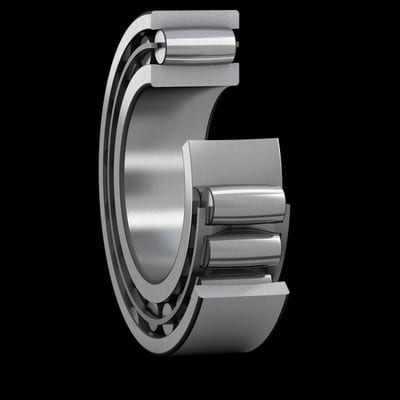

SKF C2220/C3 CARB toroidal roller bearing (C xxxx)
SKF

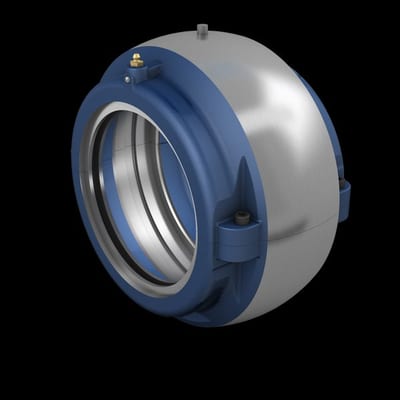

SKF COP.01C500EX Cooper split roller bearing
