SKF 81103TN Cylindrical roller thrust bearing (81XXX)
Pricing
Request a quote
We reply within 24 hours
Product Description
SKF 81103TN cylindrical roller thrust bearing (81xxx). Single-direction thrust bearing with cylindrical rollers between two flat washers — high axial-load capacity with excellent shock tolerance. Series 811 (light) / 812 (medium) per ISO 104. Suitable for hydraulic-cylinder end-load bearings, screw-press thrust locations, marine winch drum-thrust bearings.
Technical Specifications
- Type
- Cylindrical roller thrust bearing (81xxx) Designation: SKF 81103TN Bore d: 17 mm HS code: 8482.20 Bore diameter: 17 mm Outside diameter: 30 mm Height: 9 mm Basic dynamic load rating: 12.2 kN Basic static load rating: 31.5 kN Reference speed: 4300 r/min Limiting speed: 8500 r/min Bearing part: Complete bearing Axial load capability: Single-direction Number of rows: 1 Cage: Non-metallic Tolerance class: Normal material, bearing: Bearing steel Coating: Without Indicative carbon footprint for new product: 0.09 kg CO2e Product net weight: 0.0242 kg UNSPSC code: 31171505
Standards & Compliance
- Standard
- SKF designation convention
- Material
- As declared by SKF designation suffix
- Temperature Range
- Per SKF product data
- HS Code
- 8482.20
Cross References
- FAG 81103
- NSK 81103
- NTN 81103
- Timken 81103
- Koyo 81103
- Equivalent: 81103 (FAG)
- Equivalent: 81103 (NSK)
- Equivalent: 81103 (NTN)
- Equivalent: 81103 (Timken)
- Equivalent: 81103 (Koyo)
Compatibility & Fitment
Interchange with peer OEM equivalents on identical boundary plan and execution — confirm cage, clearance, sealing and precision-class suffix before substitution.
Product Documentation
More from SKF
SKF
SKF 99059 SKF Speedi-Sleeve shaft wear sleeve
SKF
SKF AH2336G Withdrawal sleeve
SKF
SKF C2208KTN9 CARB toroidal roller bearing (C xxxx)
SKF

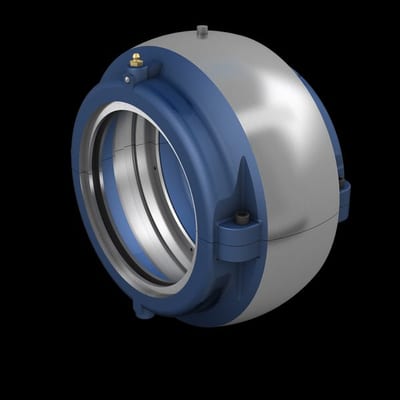

SKF COP.01C115MGR Cooper split roller bearing
