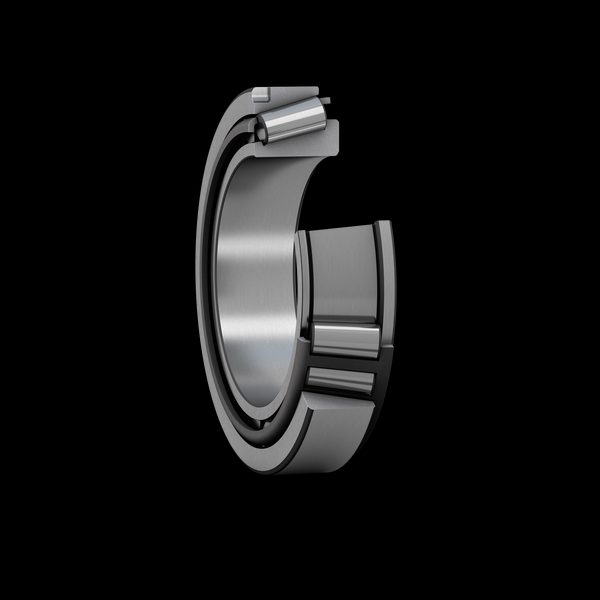

SKF 80176/80217/L4BVE141 Tapered roller bearing
Pricing
Request a quote
We reply within 24 hours
Product Description
SKF 80176/80217/L4BVE141 tapered roller bearing. Single-row tapered roller bearing designed to take combined heavy radial and one-direction axial load. Rollers, inner ring raceway (cone) and outer ring raceway (cup) are ground to converge at a common apex on the bearing axis. Two bearings are always mounted in opposition so the pair carries axial load in both directions and can be preloaded to remove all internal clearance. Metric dimensions per ISO 355 / ISO 492 Class Normal. Bore diameter d = 205 mm per ISO 15.
Technical Specifications
- Type
- Tapered roller bearing
- Designation
- SKF 80176/80217/L4BVE141
- Standard
- ISO 15 / DIN 623 dimension plan; ISO 492 Class Normal precision
- HS code
- 8482.20
- Bore diameter
- 447.675 mm
- Outside diameter
- 552.45 mm
- Width, total
- 44.45 mm
- Width, inner ring
- 44.45 mm
- Width, outer ring
- 31.75 mm
- Contact angle
- 12 °
- Basic dynamic load rating
- 644 kN
- Basic static load rating
- 1530 kN
- Reference speed
- 700 r/min
- Limiting speed
- 1000 r/min
- Bearing part
- Complete bearing
- Number of rows
- 1
- Locating feature, bearing outer ring
- Locating slot
- Bore type
- Cylindrical
- Cage
- Sheet metal
- Arrangement of contact angle (double-row bearing)
- Not applicable
- Matched arrangement
- No
- Coating
- Coated
- Sealing
- Without
- Lubricant
- None
- Relubrication feature
- Without
- Candidate for remanufacturing
- Yes
- Indicative carbon footprint for new product
- 78.8 kg CO2e
- Indicative carbon footprint for remanufactured product
- 26.2 kg CO2e
- Product net weight
- 21.3 kg
- eClass code
- 23-05-09-10
- UNSPSC code
- 31171516
Standards & Compliance
- Standard
- ISO 15 / ISO 492 / DIN 623
- Material
- Bearing steel — 100Cr6 (through-hardened) or SNR-nitrided; cage as declared by suffix
- Temperature Range
- -30 to +120 °C standard grease
- HS Code
- 8482.20
Cross References
- Timken 80176802174141
- NSK 80176802174141
- NTN 80176802174141
- FAG 80176802174141
- Koyo 80176802174141
- Equivalent: 80176802174141 (Timken)
- Equivalent: 80176802174141 (NSK)
- Equivalent: 80176802174141 (NTN)
- Equivalent: 80176802174141 (FAG)
- Equivalent: 80176802174141 (Koyo)
Compatibility & Fitment
ISO 15 boundary-plan interchange — the numeric bore-code block is portable across every ISO 15 bearing manufacturer (SKF, Timken, NSK, NTN, FAG, Koyo, NACHI). Confirm suffix compatibility on cage, seal, clearance and precision class before substitution.
