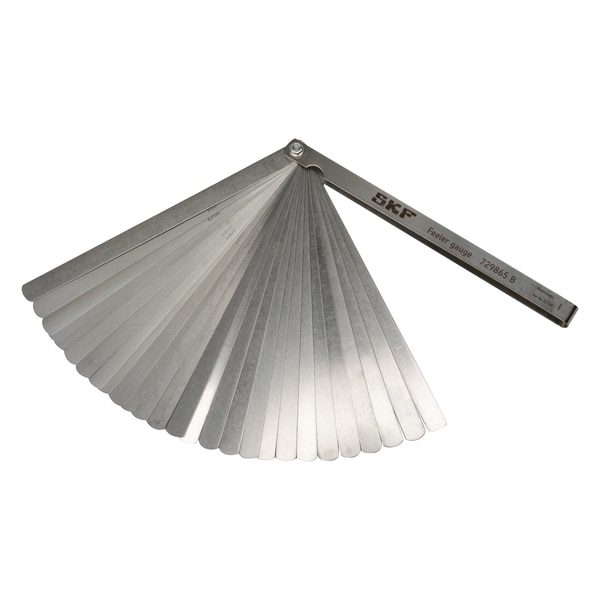

SKF 729865B Feeler gauge 0.05–1 mm

SKF 729865B hydraulic bearing mounting / dismounting tool. Hydraulic pump, oil injector, or hydraulically-driven nut used to mount a large tapered-bore bearing to its correct radial internal clearance, and to dismount it without shaft damage. SKF HMV-E hydraulic nut, TMHP / THAP pump, or SKF Drive-up-Method oil-pressure kit.

Type

Hydraulic bearing mounting / dismounting tool

Designation

SKF 729865B

HS code

8412.29

Country of Manufacturing (COM code)

45 - India

Product net weight

0.26 kg

eClass code

23-05-19-01

UNSPSC code

73152101

Recommended applications

To mount bearings without the SKF drive up method (manual way to reduce the radial internal clearance);For checking clearances in bearings;For inspecting clearances in other applications.

Suitable for bearing mounting on a Tapered seating (conical shaft)

Yes, as part of checking the radial internal clearance to mount the bearing with the correct interference fit.

Suitable for bearing mounting on a Sleeve (adapter or withdrawal)

Yes, as part of checking the radial internal clearance to mount the bearing with the correct interference fit.

Number of Blades

29

Blade length

200 mm

Blade width

13 mm

Blade thickness

0.05 mm / 0.09 mm / 0.10 mm / 0.11 mm / 0.12 mm / 0.13 mm / 0.14 mm / 0.15 mm / 0.16 mm / 0.17 mm / 0.18 mm / 0.19 mm / 0.20 mm / 0.25 mm / 0.30 mm / 0.35 mm / 0.40 mm / 0.45 mm / 0.50 mm / 0.55 mm / 0.60 mm / 0.65 mm / 0.70 mm / 0.75 mm / 0.80 mm / 0.85 mm / 0.90 mm / 0.95 mm / 1.00

Blade thickness tolerances

for blades with thickness upto and including 0.10 mm: +0.007 / -0.005 mm;for blades with thickness from 0.11 mm to 0.35 mm: +0.010 / -0.005 mm;for blades with thickness from 0.35 mm to 0.65 mm: +0.015 / -0.007 mm;for blades with thickness 0.65 mm and above: +0.020 / -0.009 mm

Special features

Protective stainless steel housing;Each blade marked with its thickness;Supplied in plastic storage cover

Suitable for Drive up method

Not required but can used as additonal clearance check

Suitable for bearing type(s)

SRB

Colour

Metallic

Material

Hardened and polished high quality high carbon alloy spring steel

Coating

None

Standard

SKF designation convention

Material

As declared by SKF designation suffix

Temperature Range

Per SKF product data

HS Code

8412.29

• Enerpac 729865
• Simatec 729865
• Alt. designation 729865 B
• Equivalent: 729865 (Enerpac)
• Equivalent: 729865 (Simatec)
