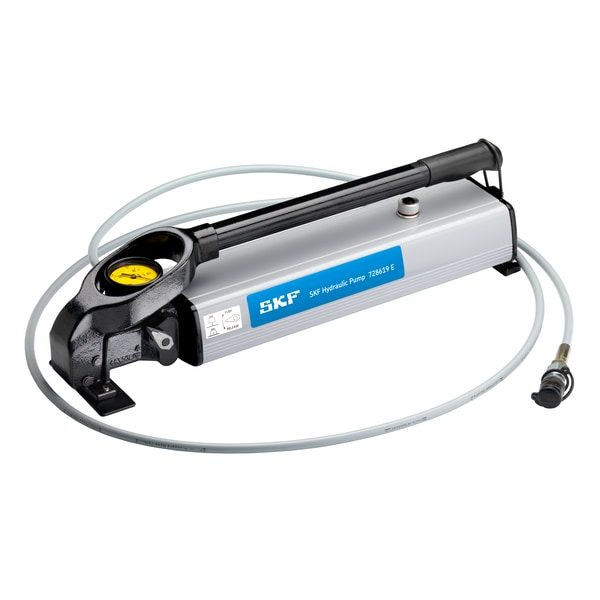

SKF 728619E Hydraulic bearing mounting / dismounting tool
Pricing
Request a quote
We reply within 24 hours
Product Description
SKF 728619E hydraulic bearing mounting / dismounting tool. Hydraulic pump, oil injector, or hydraulically-driven nut used to mount a large tapered-bore bearing to its correct radial internal clearance, and to dismount it without shaft damage. SKF HMV-E hydraulic nut, TMHP / THAP pump, or SKF Drive-up-Method oil-pressure kit.
Technical Specifications
- Type
- Hydraulic bearing mounting / dismounting tool
- Designation
- SKF 728619E
- HS code
- 8412.29
- Dimensions (W x L x H)
- 130 x 620 x 170 mm
- Case dimensions (l x h x w)
- 753 x 190 x 330 mm
- Maximum pressure
- 1500 bar
- Maximum pressure (MPa)
- 150 MPa
- Recommended applications
- SKF Supergrip bolts;Oil injection applications where the maximum pressure is 150 MPa (21 750 psi);All sizes SKF hydraulic nuts
- Type of pump
- Two stage
- Volume per stroke, 1st stage
- 20 cm³, below 2.5 MPa
- Volume per stroke, 2nd stage
- 1.0 cm³, above 2.5 MPa
- Oil container capacity
- 2400 ml
- Pressure gauge
- Yes, analogue
- Hose length
- 3000 mm
- Filled with oil
- Yes, with SKF Mounting Fluid LHMF 300
- Handle force at maximum oil pressure
- 370 N
- Connection nipple
- G 1/4 (male)
- Suitable for Drive up method
- No
- Housing material
- Aluminium pump body
- Colour
- Grey;Black
- Relative humidity
- 0 to 75%, non-condensing
- Content
- Pump with mounting fluid;pressure hose;quick connection coupling;quick connection nipple;pressure gauge;metal case;1l can of mounting fluid
- Country of Manufacturing (COM code)
- 11 - Sweden
- Product net weight
- 19.9 kg
- eClass code
- 23-05-19-01
- UNSPSC code
- 27112908
Standards & Compliance
- Standard
- SKF designation convention
- Material
- As declared by SKF designation suffix
- Temperature Range
- Per SKF product data
- HS Code
- 8412.29
Cross References
- Enerpac 728619
- Simatec 728619
- Equivalent: 728619 (Enerpac)
- Equivalent: 728619 (Simatec)
Compatibility & Fitment
Interchange with peer OEM equivalents on identical boundary plan and execution — confirm cage, clearance, sealing and precision-class suffix before substitution.
