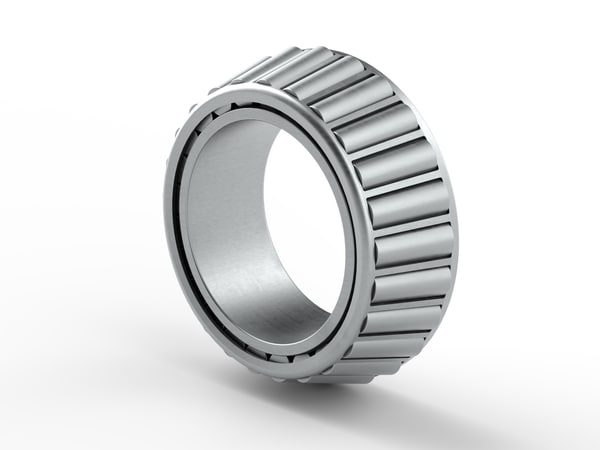

SKF 6389/Q Tapered roller bearing
Pricing
Request a quote
We reply within 24 hours
Product Description
SKF 6389/Q tapered roller bearing. Single-row tapered roller bearing designed to take combined heavy radial and one-direction axial load. Rollers, inner ring raceway (cone) and outer ring raceway (cup) are ground to converge at a common apex on the bearing axis. Two bearings are always mounted in opposition so the pair carries axial load in both directions and can be preloaded to remove all internal clearance. Metric dimensions per ISO 355 / ISO 492 Class Normal.
Technical Specifications
- Type
- Tapered roller bearing
- Designation
- SKF 6389/Q
- Standard
- ISO 15 / DIN 623 dimension plan; ISO 492 Class Normal precision
- HS code
- 8482.20
- Bore diameter
- 66.675 mm
- Width, total
- 56.007 mm
- Width, inner ring
- 56.007 mm
- Basic dynamic load rating
- 286 kN
- Basic static load rating
- 400 kN
- Bearing part
- Inner ring, cage and roller assembly (cone assembly)
- Bore type
- Cylindrical
- Cage
- Sheet metal
- Arrangement of contact angle (double-row bearing)
- Not applicable
- Matched arrangement
- No
- Coating
- Without
- Sealing
- Without
- Lubricant
- None
- Relubrication feature
- Without
- Unit system
- Inch
- Indicative carbon footprint for new product
- 8.1 kg CO2e
- Product net weight
- 2.2 kg
- eClass code
- 23-05-09-10
- UNSPSC code
- 31171516
Standards & Compliance
- Standard
- ISO 15 / ISO 492 / DIN 623
- Material
- Bearing steel — 100Cr6 (through-hardened) or SNR-nitrided; cage as declared by suffix
- Temperature Range
- -30 to +120 °C standard grease
- HS Code
- 8482.20
Cross References
- Timken 6389
- NSK 6389
- NTN 6389
- FAG 6389
- Koyo 6389
- SKF 6389
- Equivalent: 6389 (Timken)
- Equivalent: 6389 (NSK)
- Equivalent: 6389 (NTN)
- Equivalent: 6389 (FAG)
- Equivalent: 6389 (Koyo)
- Supersedes: 6389 (SKF)
Compatibility & Fitment
ISO 15 boundary-plan interchange — the numeric bore-code block is portable across every ISO 15 bearing manufacturer (SKF, Timken, NSK, NTN, FAG, Koyo, NACHI). Confirm suffix compatibility on cage, seal, clearance and precision class before substitution.
Product Documentation
More from SKF
Technical guides
- Tapered Roller Bearing Finder — by Bore and Series (302, 303, 313, 320, 322, 323, 329–332, Inch Cone/Cup) SKF
- SKF 81xxx Cylindrical Roller Thrust Bearing — Dimensions, Load Ratings & Interchange (81102 to 81140)
- SKF Deep Groove Ball Bearing Reference — 6000 / 6200 / 6300 / 6400 Series (Dimensions, Load Ratings, Interchange to FAG NSK NTN Timken)
Catalogue entry last verified: 2026-09-30. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy 6389/Q?
- 6389/Q can be ordered from cballast.com as a SKF catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this SKF product?
- The manufacturer part number is 6389/Q.
- What is the HS code for 6389/Q?
- The customs tariff (HS) code for 6389/Q is 8482.20.
- Who manufactures 6389/Q?
- 6389/Q is a SKF product in the Bearings & Power Transmission range.
- Is a datasheet available for 6389/Q?
- Yes — the 6389/Q datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for 6389/Q?
- The minimum order quantity is 1.
- Is 6389/Q available?
- Yes — 6389/Q is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
