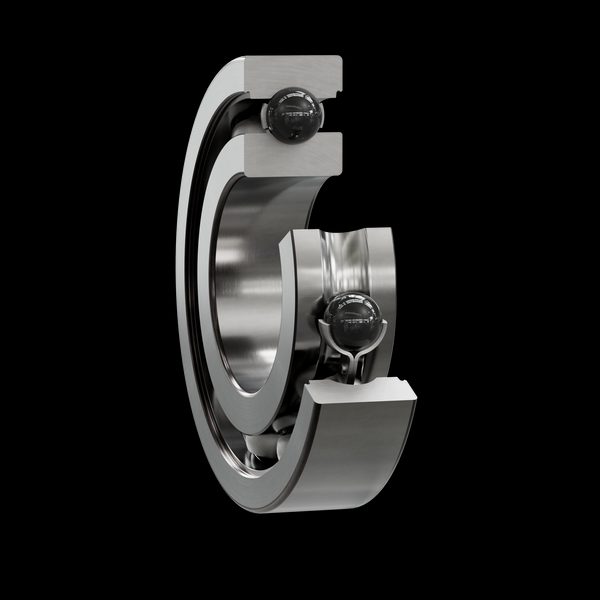

SKF 6317/HC5C3VA505 Deep-groove ball bearing
Pricing
Request a quote
We reply within 24 hours
Product Description
SKF 6317/HC5C3VA505 deep-groove ball bearing. Deep-groove ball bearing designed for combined radial and moderate axial load, high running speed and low frictional torque. Manufactured to ISO 492 (Class Normal / P6 / P5) with standard C0 radial internal clearance unless a suffix declares otherwise. Available in open, single-shielded (Z), double-shielded (2Z), single-lip contact-sealed (RSH / RS1), and double-lip contact-sealed (2RSH / 2RS1) execution. Bore, outside diameter and width follow the ISO 15 dimension plan. Boundary plan per ISO 15: bore d = 85 mm, outside diameter D = 180 mm, width B = 41 mm.
Technical Specifications
- Type
- Deep-groove ball bearing
- Designation
- SKF 6317/HC5C3VA505
- Standard
- ISO 15 / DIN 623 dimension plan; ISO 492 Class Normal precision
- Bore d
- 85 mm
- Outside diameter D
- 180 mm
- Width B
- 41 mm
- HS code
- 8482.10
- Bore diameter
- 85 mm
- Outside diameter
- 180 mm
- Width
- 41 mm
- Basic dynamic load rating
- 130 kN
- Basic static load rating
- 81.5 kN
- Reference speed
- 9500 r/min
- Limiting speed
- 6000 r/min
- Filling slots
- Without
- Number of rows
- 1
- Locating feature, bearing outer ring
- Without
- Bore type
- Cylindrical
- Cage
- Sheet metal
- Matched arrangement
- No
- Radial internal clearance
- C3
- Material, bearing
- Hybrid (ceramic balls)
- Coating
- Without
- Sealing
- Without
- Relubrication feature
- Without
- Indicative carbon footprint for new product
- 15.5 kg CO2e
- Product net weight
- 4.19 kg
- eClass code
- 23-05-08-01
- UNSPSC code
- 31171504
- Lubricant
- None
Standards & Compliance
- Standard
- ISO 15 / ISO 492 / DIN 623
- Material
- Bearing steel — 100Cr6 (through-hardened) or SNR-nitrided; cage as declared by suffix
- Temperature Range
- -30 to +120 °C standard grease
- HS Code
- 8482.10
Cross References
- Timken 631753505
- NSK 631753505
- NTN 631753505
- FAG 631753505
- Koyo 631753505
- NACHI 631753505
- Equivalent: 631753505 (Timken)
- Equivalent: 631753505 (NSK)
- Equivalent: 631753505 (NTN)
- Equivalent: 631753505 (FAG)
- Equivalent: 631753505 (Koyo)
- Equivalent: 631753505 (NACHI)
Compatibility & Fitment
ISO 15 boundary-plan interchange — the numeric bore-code block is portable across every ISO 15 bearing manufacturer (SKF, Timken, NSK, NTN, FAG, Koyo, NACHI). Confirm suffix compatibility on cage, seal, clearance and precision class before substitution.
Product Documentation
More from SKF
SKF
SKF 63172RSJEM Deep-groove ball bearing
SKF
SKF 63172ZJEM Deep-groove ball bearing
SKF
SKF 6317JEM Deep-groove ball bearing
SKF
SKF 6317M Deep-groove ball bearing
SKF
SKF 6317M/C3 Deep-groove ball bearing
SKF
SKF 6317M/C3VL0241 Deep-groove ball bearing
SKF
SKF 6317ZJEM Deep-groove ball bearing
SKF
SKF 6318 Deep-groove ball bearing
Technical guides
Catalogue entry last verified: 2026-08-13. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy 6317/HC5C3VA505?
- 6317/HC5C3VA505 can be ordered from cballast.com as a SKF catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this SKF product?
- The manufacturer part number is 6317/HC5C3VA505.
- What is the HS code for 6317/HC5C3VA505?
- The customs tariff (HS) code for 6317/HC5C3VA505 is 8482.10.
- Who manufactures 6317/HC5C3VA505?
- 6317/HC5C3VA505 is a SKF product in the Bearings & Power Transmission range.
- Is a datasheet available for 6317/HC5C3VA505?
- Yes — the 6317/HC5C3VA505 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for 6317/HC5C3VA505?
- The minimum order quantity is 1.
- Is 6317/HC5C3VA505 available?
- Yes — 6317/HC5C3VA505 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
