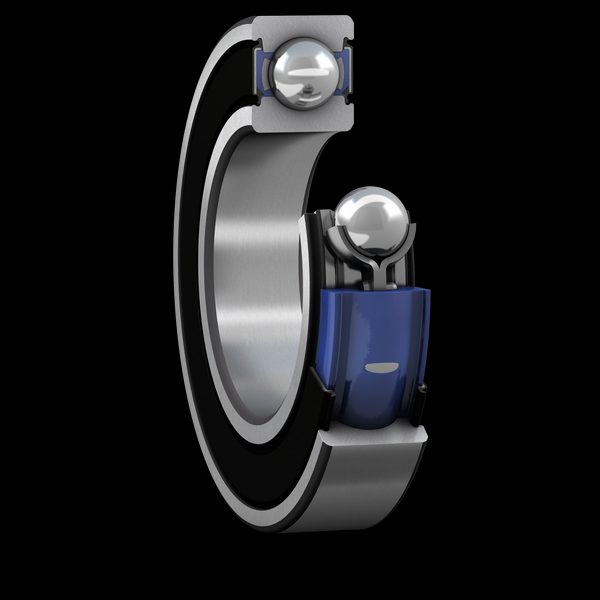

SKF 6205-2RSH/W64 Deep-groove ball bearing
Pricing
Request a quote
We reply within 24 hours
Product Description
SKF 6205-2RSH/W64 deep-groove ball bearing. Deep-groove ball bearing designed for combined radial and moderate axial load, high running speed and low frictional torque. Manufactured to ISO 492 (Class Normal / P6 / P5) with standard C0 radial internal clearance unless a suffix declares otherwise. Available in open, single-shielded (Z), double-shielded (2Z), single-lip contact-sealed (RSH / RS1), and double-lip contact-sealed (2RSH / 2RS1) execution. Bore, outside diameter and width follow the ISO 15 dimension plan. Boundary plan per ISO 15: bore d = 25 mm, outside diameter D = 52 mm, width B = 15 mm.
Technical Specifications
- Type
- Deep-groove ball bearing
- Designation
- SKF 6205-2RSH/W64
- Standard
- ISO 15 / DIN 623 dimension plan; ISO 492 Class Normal precision
- Bore d
- 25 mm
- Outside diameter D
- 52 mm
- Width B
- 15 mm
- HS code
- 8482.10
- Bore diameter
- 25 mm
- Outside diameter
- 52 mm
- Width
- 15 mm
- Basic dynamic load rating
- 14.8 kN
- Basic static load rating
- 7.8 kN
- Limiting speed
- 6100 r/min
- Note
- Limiting speed at 20 °C (70 °F) ambient temperature r/min
- Maximum operating temperature
- 85 °C
- SKF performance class
- SKF Explorer
- Filling slots
- Without
- Number of rows
- 1
- Locating feature, bearing outer ring
- Without
- Bore type
- Cylindrical
- Cage
- Sheet metal
- Matched arrangement
- No
- Radial internal clearance
- CN
- Material, bearing
- Bearing steel
- Coating
- Without
- Sealing
- Seal on both sides
- Sealing type
- Contact
- Lubricant
- Solid Oil
- Relubrication feature
- Without
- Indicative carbon footprint for new product
- 0.48 kg CO2e
- Product net weight
- 0.13 kg
- eClass code
- 23-05-08-01
- UNSPSC code
- 31171504
Standards & Compliance
- Standard
- ISO 15 / ISO 492 / DIN 623
- Material
- Bearing steel — 100Cr6 (through-hardened) or SNR-nitrided; cage as declared by suffix
- Temperature Range
- -30 to +120 °C standard grease
- HS Code
- 8482.10
Cross References
- Timken 6205264
- NSK 6205264
- NTN 6205264
- FAG 6205264
- Koyo 6205264
- NACHI 6205264
- SKF 6205-2RSH
- Equivalent: 6205264 (Timken)
- Equivalent: 6205264 (NSK)
- Equivalent: 6205264 (NTN)
- Equivalent: 6205264 (FAG)
- Equivalent: 6205264 (Koyo)
- Equivalent: 6205264 (NACHI)
- Supersedes: 6205-2RSH (SKF)
Compatibility & Fitment
ISO 15 boundary-plan interchange — the numeric bore-code block is portable across every ISO 15 bearing manufacturer (SKF, Timken, NSK, NTN, FAG, Koyo, NACHI). Confirm suffix compatibility on cage, seal, clearance and precision class before substitution.
