SKF 608-2Z/C3LHT23 Deep-groove ball bearing
Pricing
Request a quote
We reply within 24 hours
Product Description
SKF 608-2Z/C3LHT23 deep-groove ball bearing. Deep-groove ball bearing designed for combined radial and moderate axial load, high running speed and low frictional torque. Manufactured to ISO 492 (Class Normal / P6 / P5) with standard C0 radial internal clearance unless a suffix declares otherwise. Available in open, single-shielded (Z), double-shielded (2Z), single-lip contact-sealed (RSH / RS1), and double-lip contact-sealed (2RSH / 2RS1) execution. Bore, outside diameter and width follow the ISO 15 dimension plan. Bore diameter d = 115 mm per ISO 15.
Technical Specifications
- Type
- Deep-groove ball bearing
- Designation
- SKF 608-2Z/C3LHT23
- Standard
- ISO 15 / DIN 623 dimension plan; ISO 492 Class Normal precision
- HS code
- 8482.10
- Bore diameter
- 8 mm
- Outside diameter
- 22 mm
- Width
- 7 mm
- Basic dynamic load rating
- 3.45 kN
- Basic static load rating
- 1.37 kN
- Reference speed
- 75000 r/min
- Limiting speed
- 38000 r/min
- SKF performance class
- SKF Explorer
- Filling slots
- Without
- Number of rows
- 1
- Locating feature, bearing outer ring
- Without
- Bore type
- Cylindrical
- Cage
- Sheet metal
- Matched arrangement
- No
- Radial internal clearance
- C3
- Material, bearing
- Bearing steel
- Coating
- Without
- Sealing
- Shield on both sides
- Sealing type
- Non-contact
- Lubricant
- Grease
- Relubrication feature
- Without
- Indicative carbon footprint for new product
- 0.04 kg CO2e
- Product net weight
- 0.012 kg
- eClass code
- 23-05-08-01
- UNSPSC code
- 31171504
Standards & Compliance
- Standard
- ISO 15 / ISO 492 / DIN 623
- Material
- Bearing steel — 100Cr6 (through-hardened) or SNR-nitrided; cage as declared by suffix
- Temperature Range
- -30 to +120 °C standard grease
- HS Code
- 8482.10
Cross References
- Timken 6082323
- NSK 6082323
- NTN 6082323
- FAG 6082323
- Koyo 6082323
- NACHI 6082323
- Equivalent: 6082323 (Timken)
- Equivalent: 6082323 (NSK)
- Equivalent: 6082323 (NTN)
- Equivalent: 6082323 (FAG)
- Equivalent: 6082323 (Koyo)
- Equivalent: 6082323 (NACHI)
Compatibility & Fitment
ISO 15 boundary-plan interchange — the numeric bore-code block is portable across every ISO 15 bearing manufacturer (SKF, Timken, NSK, NTN, FAG, Koyo, NACHI). Confirm suffix compatibility on cage, seal, clearance and precision class before substitution.
Product Documentation
More from SKF
SKF
SKF 608-2Z/C3WT Deep-groove ball bearing
SKF
SKF 608-2Z/GJN Deep-groove ball bearing
SKF
SKF 608-2Z/LHT23 Deep-groove ball bearing
SKF

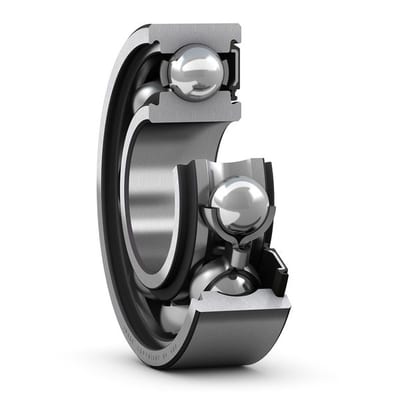

SKF 608-Rsh Deep-groove ball bearing
608-RSH
SKF
SKF 608-Z Deep-groove ball bearing
SKF

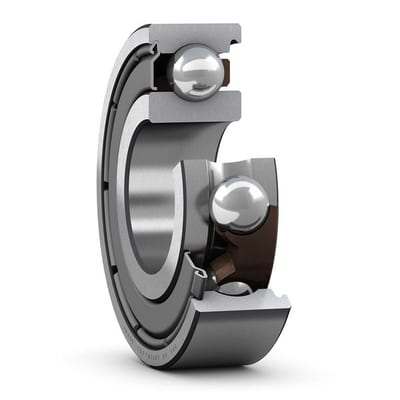

SKF 608-ZTN9/LT Deep-groove ball bearing
