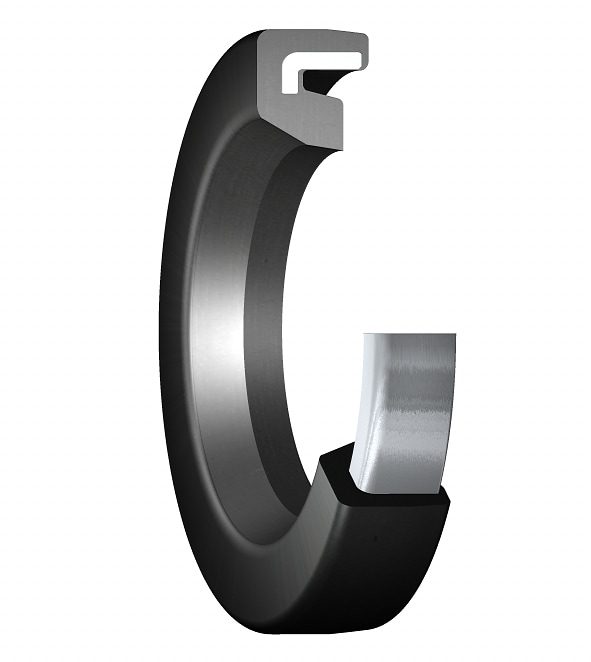

SKF 60075 CR / HMS / HMSA radial shaft seal
Pricing
Request a quote
We reply within 24 hours
Product Description
SKF 60075 cr / hms / hmsa radial shaft seal. SKF radial shaft seal for rotating-shaft primary containment against dust, splash and low-head oil pressure. Designation CR / HMS5 / HMSA10 / HMSA10RG (single lip, single lip with dust lip, double lip with garter spring). Elastomer standard nitrile (NBR) to ISO 6194-1 with metal case; hydrogenated nitrile (HNBR), fluoroelastomer (FKM / Viton), silicone (VMQ) and polyacrylate (ACM) available by suffix. Bore, outside diameter and width follow ISO 6194 / DIN 3760.
Technical Specifications
- Type
- CR / HMS / HMSA radial shaft seal Designation: SKF 60075 HS code: 4016.93 Shaft diameter: 152.4 mm Housing bore diameter: 190.5 mm Seal width: 6.35 mm Limiting speed: 1548 r/min Maximum operating temperature: 100 °C minimum operating temperature: -40 °C Permissible circumferential speed: 12.4 m/s Rotational speed: 1548 r/min Design: HM4 Auxiliary lip: No Sealing lip material: Nitrile rubber (NBR) Type of outside diameter: Metal-cased Unit system: Inch Product net weight: 0.0997 kg eClass code: 23-07-08-01 UNSPSC code: 31181602
Standards & Compliance
- Standard
- SKF designation convention (see description for governing ISO / DIN)
- Material
- As declared by SKF designation suffix
- Temperature Range
- Per SKF product data
- HS Code
- 4016.93
Cross References
- Freudenberg 60075
- Trelleborg 60075
- Chesterton 60075
- Garlock 60075
- National 60075
- Equivalent: 60075 (Freudenberg)
- Equivalent: 60075 (Trelleborg)
- Equivalent: 60075 (Chesterton)
- Equivalent: 60075 (Garlock)
- Equivalent: 60075 (National)
Compatibility & Fitment
Interchange with peer OEM equivalents on identical boundary plan and execution — confirm cage, clearance, sealing and precision-class suffix before substitution.
