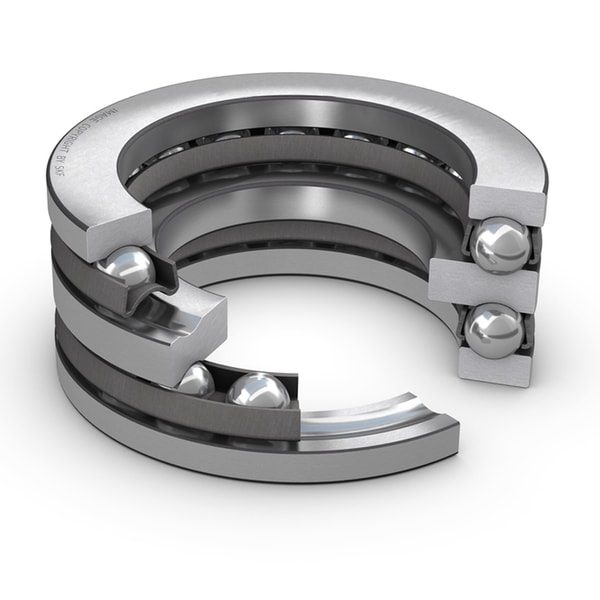

SKF 52320 — Thrust ball bearing
SKF · Bearings & Power Transmission · Thrust Ball Bearings
SKF 52320 thrust ball bearing. Single-direction (51xxx) or double-direction (52xxx) thrust ball bearing designed to carry pure axial load at moderate speed. Cannot carry radial load. Series 511/512/513/514 covers the standard boundary plans. Manufactured to ISO 104 / ISO 492 Class Normal. Bore diameter d = 100 mm per ISO 15. Designation follows the ISO 15 / DIN 623 alphanumeric convention where the numeric block encodes the dimension series and bore code; suffixes after the numeric block declare cage, closure, precision, clearance and lubricant execution. Genuine SKF supply carries the SKF logo etch on the outer ring face and hologram-authenticated packaging.
Specifications
- Part number
- 52320
- HS code
- 8482.10
- Material
- Bearing steel — 100Cr6 (through-hardened) or SNR-nitrided; cage as declared by suffix
- Dimensions
- bore d = 100 mm
- Temperature range
- -30 to +120 °C standard grease
- Standard
- ISO 15 / ISO 492 / DIN 623
Compatibility
ISO 15 boundary-plan interchange — the numeric bore-code block is portable across every ISO 15 bearing manufacturer (SKF, Timken, NSK, NTN, FAG, Koyo, NACHI). Confirm suffix compatibility on cage, seal, clearance and precision class before substitution.
Standards
Also known as — OEM cross-references & superseded numbers
- Timken 52320
- NSK 52320
- NTN 52320
- FAG 52320
- Koyo 52320
- Competitor equivalent: 52320 (Timken)
- Competitor equivalent: 52320 (NSK)
- Competitor equivalent: 52320 (NTN)
- Competitor equivalent: 52320 (FAG)
- Competitor equivalent: 52320 (Koyo)
