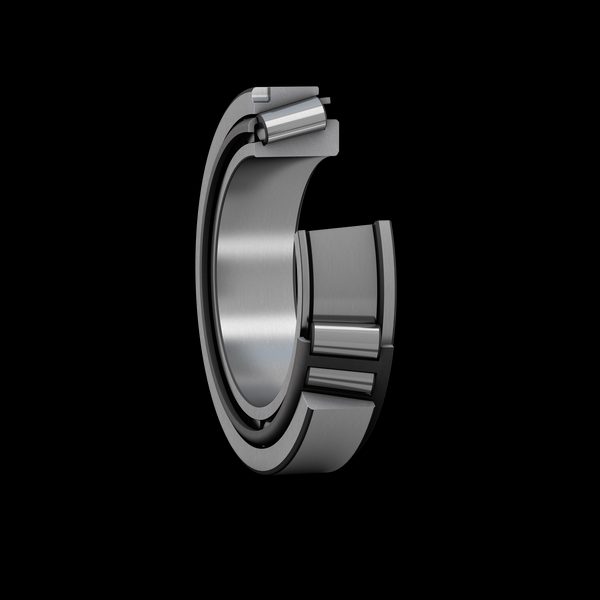

SKF 38880/38820/VE141 Tapered roller bearing
Pricing
Request a quote
We reply within 24 hours
Product Description
SKF 38880/38820/VE141 tapered roller bearing. Single-row tapered roller bearing designed to take combined heavy radial and one-direction axial load. Rollers, inner ring raceway (cone) and outer ring raceway (cup) are ground to converge at a common apex on the bearing axis. Two bearings are always mounted in opposition so the pair carries axial load in both directions and can be preloaded to remove all internal clearance. Metric dimensions per ISO 355 / ISO 492 Class Normal. Bore diameter d = 205 mm per ISO 15.
Technical Specifications
- Type
- Tapered roller bearing
- Designation
- SKF 38880/38820/VE141
- Standard
- ISO 15 / DIN 623 dimension plan; ISO 492 Class Normal precision
- HS code
- 8482.20
- Bore diameter
- 263.525 mm
- Outside diameter
- 325.438 mm
- Width, total
- 28.575 mm
- Width, inner ring
- 28.575 mm
- Width, outer ring
- 25.4 mm
- Contact angle
- 13.7 °
- Basic dynamic load rating
- 273 kN
- Basic static load rating
- 550 kN
- Reference speed
- 1400 r/min
- Limiting speed
- 1700 r/min
- SKF performance class
- SKF Explorer
- Bearing part
- Complete bearing
- Number of rows
- 1
- Locating feature, bearing outer ring
- Locating slot
- Bore type
- Cylindrical
- Cage
- Sheet metal
- Arrangement of contact angle (double-row bearing)
- Not applicable
- Matched arrangement
- No
- Coating
- Without
- Sealing
- Without
- Lubricant
- None
- Relubrication feature
- Without
- Candidate for remanufacturing
- Yes
- Indicative carbon footprint for new product
- 19.5 kg CO2e
- Indicative carbon footprint for remanufactured product
- 6.5 kg CO2e
- Product net weight
- 5.28 kg
- eClass code
- 23-05-09-10
- UNSPSC code
- 31171516
Standards & Compliance
- Standard
- ISO 15 / ISO 492 / DIN 623
- Material
- Bearing steel — 100Cr6 (through-hardened) or SNR-nitrided; cage as declared by suffix
- Temperature Range
- -30 to +120 °C standard grease
- HS Code
- 8482.20
Cross References
- Timken 3888038820141
- NSK 3888038820141
- NTN 3888038820141
- FAG 3888038820141
- Koyo 3888038820141
- SKF 38880/38820
- Equivalent: 3888038820141 (Timken)
- Equivalent: 3888038820141 (NSK)
- Equivalent: 3888038820141 (NTN)
- Equivalent: 3888038820141 (FAG)
- Equivalent: 3888038820141 (Koyo)
- Supersedes: 38880/38820 (SKF)
Compatibility & Fitment
ISO 15 boundary-plan interchange — the numeric bore-code block is portable across every ISO 15 bearing manufacturer (SKF, Timken, NSK, NTN, FAG, Koyo, NACHI). Confirm suffix compatibility on cage, seal, clearance and precision class before substitution.
