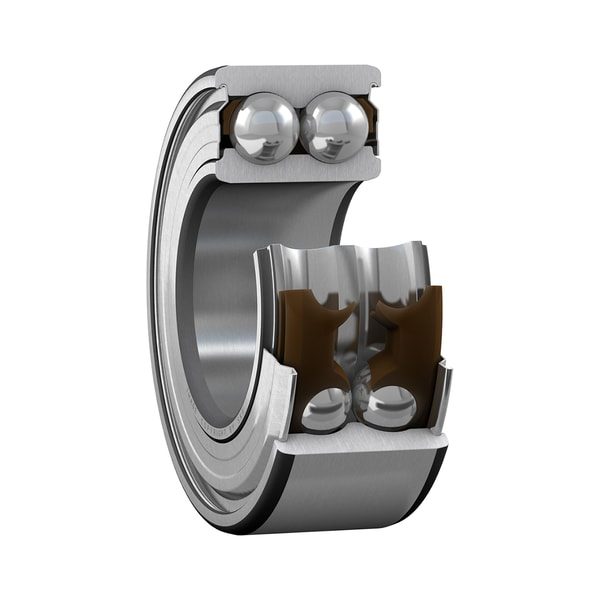

SKF 3319A-2ZTN9/C3VT113 Double-row angular contact ball bearing

SKF 3319A-2ZTN9/C3VT113 double-row angular contact ball bearing. Double-row angular contact ball bearing (32xx-2Z, 33xx, 52xx / 53xx) taking heavy combined radial and axial load in both directions from a single position. Contact angle 30° or 45°. Standard shielded (2Z) or contact-sealed (2RS1) execution. Suitable for pump impeller shafts, gearbox output shafts, propeller-shaft thrust ends on smaller marine gearboxes.

Type

Double-row angular contact ball bearing

Designation

SKF 3319A-2ZTN9/C3VT113

Bore d

95 mm

HS code

8482.10

Bore diameter

95 mm

Outside diameter

200 mm

Width

77.8 mm

Contact angle

30 °

Basic dynamic load rating

240 kN

Basic static load rating

216 kN

Reference speed

3600 r/min

Limiting speed

3200 r/min

SKF performance class

SKF Explorer

Contact type

Normal contact (two-point contact)

Number of rows

2

Locating feature, bearing outer ring

Without

Ring type

One-piece inner and outer rings

Cage

Non-metallic

Arrangement of contact angle (double-row bearing)

Back-to-back (O)

Matched arrangement

No

Universal matching bearing

No

Axial internal clearance

C3

Material, bearing

Bearing steel

Coating

Without

Sealing

Shield on both sides

Sealing type

Non-contact

Lubricant

Grease

Relubrication feature

Without

Indicative carbon footprint for new product

35.1 kg CO2e

Product net weight

9.5 kg

eClass code

23-05-08-03

UNSPSC code

31171531

Standard

SKF designation convention (see description for governing ISO / DIN)

Material

As declared by SKF designation suffix

Temperature Range

Per SKF product data

HS Code

8482.10
