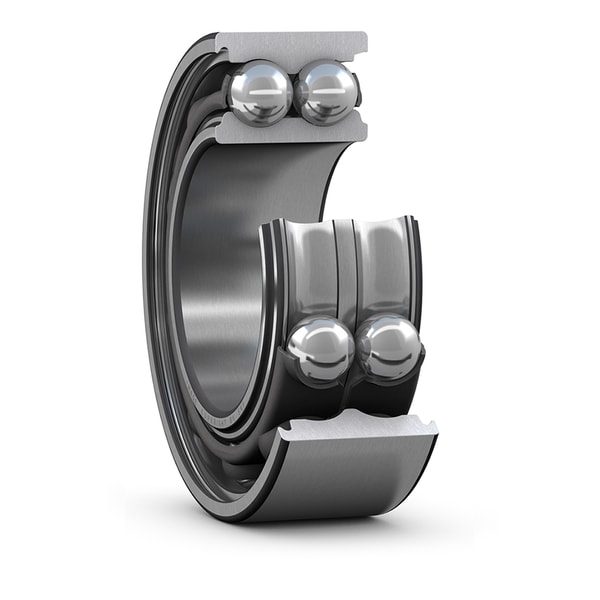

SKF 3316A Double-row angular contact ball bearing

SKF 3316A double-row angular contact ball bearing. Double-row angular contact ball bearing (32xx-2Z, 33xx, 52xx / 53xx) taking heavy combined radial and axial load in both directions from a single position. Contact angle 30° or 45°. Standard shielded (2Z) or contact-sealed (2RS1) execution. Suitable for pump impeller shafts, gearbox output shafts, propeller-shaft thrust ends on smaller marine gearboxes.

Type

Double-row angular contact ball bearing

Designation

SKF 3316A

Bore d

80 mm

HS code

8482.10

Bore diameter

80 mm

Outside diameter

170 mm

Width

68.3 mm

Contact angle

30 °

Basic dynamic load rating

193 kN

Basic static load rating

156 kN

Reference speed

4300 r/min

Limiting speed

3800 r/min

SKF performance class

SKF Explorer

Contact type

Normal contact (two-point contact)

Number of rows

2

Locating feature, bearing outer ring

Without

Ring type

One-piece inner and outer rings

Cage

Sheet metal

Arrangement of contact angle (double-row bearing)

Back-to-back (O)

Matched arrangement

No

Universal matching bearing

No

Axial internal clearance

CN

Material, bearing

Bearing steel

Coating

Without

Sealing

Without

Lubricant

None

Relubrication feature

Without

Indicative carbon footprint for new product

23.2 kg CO2e

Product net weight

6.27 kg

eClass code

23-05-08-03

UNSPSC code

31171531

Standard

SKF designation convention (see description for governing ISO / DIN)

Material

As declared by SKF designation suffix

Temperature Range

Per SKF product data

HS Code

8482.10

• FAG 3316
• NSK 3316
• NTN 3316
• Timken 3316
• Koyo 3316
• Equivalent: 3316 (FAG)
• Equivalent: 3316 (NSK)
• Equivalent: 3316 (NTN)
• Equivalent: 3316 (Timken)
• Equivalent: 3316 (Koyo)
