SKF 32944/DF Matched pair / set of tapered roller bearings
Pricing
Request a quote
We reply within 24 hours
Product Description
SKF 32944/DF matched pair / set of tapered roller bearings. Factory-matched pair (TDO / 2S / 3S) or set of tapered roller bearings, pre-selected so the assembled axial or radial internal clearance falls in a controlled band. Suitable for gearbox pinion shafts, marine propeller-shaft thrust bearings, wheel-hub bearings.
Technical Specifications
- Type
- Matched pair / set of tapered roller bearings
- Designation
- SKF 32944/DF
- Bore d
- 220 mm
- HS code
- 8482.20
- Bore diameter
- 220 mm
- Outside diameter
- 300 mm
- Width, total
- 102 mm
- Width, inner ring
- 102 mm
- Width, outer ring
- 102 mm
- Contact angle
- 15.8 °
- Basic dynamic load rating
- 1030 kN
- Basic static load rating
- 2000 kN
- Reference speed
- 1200 r/min
- Limiting speed
- 1900 r/min
- SKF performance class
- SKF Explorer
- Bearing part
- Complete bearing
- Number of rows
- 2
- Locating feature, bearing outer ring
- Without
- Bore type
- Cylindrical
- Cage
- Sheet metal
- Matched arrangement
- Face-to-face (X)
- Number of bearings in matched set
- 2
- Coating
- Without
- Sealing
- Without
- Lubricant
- None
- Relubrication feature
- With
- Indicative carbon footprint for new product
- 77.8 kg CO2e
- Product net weight
- 21 kg
- eClass code
- 23-05-09-10
Standards & Compliance
- Standard
- SKF designation convention
- Material
- As declared by SKF designation suffix
- Temperature Range
- Per SKF product data
- HS Code
- 8482.20
Cross References
- Timken 32944
- NSK 32944
- NTN 32944
- FAG 32944
- Koyo 32944
- Equivalent: 32944 (Timken)
- Equivalent: 32944 (NSK)
- Equivalent: 32944 (NTN)
- Equivalent: 32944 (FAG)
- Equivalent: 32944 (Koyo)
Compatibility & Fitment
Interchange with peer OEM equivalents on identical boundary plan and execution — confirm cage, clearance, sealing and precision-class suffix before substitution.
Product Documentation
More from SKF
SKF
SKF NJ18/630ECMA/HB1 Single-row cylindrical roller bearing (NU / N / NJ / NUP)
SKF
SKF WS81222 Cylindrical roller thrust bearing (81XXX)
SKF
SKF 99533 SKF Speedi-Sleeve shaft wear sleeve
SKF
SKF SK134 Withdrawal sleeve
SKF
SKF C39/710M CARB toroidal roller bearing (C xxxx)
SKF
SKF COP.FELT09 Cooper split roller bearing
SKF
SKF F2BSS107-TPSS Flanged ball bearing unit (UCF / UCFC / UCFL)
SKF

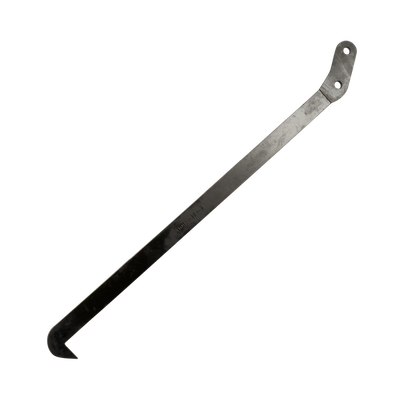

SKF TMMP10-3 Bearing mounting / dismounting tool
Technical guides
- Tapered Roller Bearing Finder — by Bore and Series (302, 303, 313, 320, 322, 323, 329–332, Inch Cone/Cup) SKF
- SKF 81xxx Cylindrical Roller Thrust Bearing — Dimensions, Load Ratings & Interchange (81102 to 81140)
- SKF Deep Groove Ball Bearing Reference — 6000 / 6200 / 6300 / 6400 Series (Dimensions, Load Ratings, Interchange to FAG NSK NTN Timken)
Catalogue entry last verified: 2026-08-13. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy 32944/DF?
- 32944/DF can be ordered from cballast.com as a SKF catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this SKF product?
- The manufacturer part number is 32944/DF.
- What is the HS code for 32944/DF?
- The customs tariff (HS) code for 32944/DF is 8482.20.
- Who manufactures 32944/DF?
- 32944/DF is a SKF product in the Bearings & Power Transmission range.
- Is a datasheet available for 32944/DF?
- Yes — the 32944/DF datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for 32944/DF?
- The minimum order quantity is 1.
- Is 32944/DF available?
- Yes — 32944/DF is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
