SKF 32240/DF Matched pair / set of tapered roller bearings
Pricing
Request a quote
We reply within 24 hours
Product Description
SKF 32240/DF matched pair / set of tapered roller bearings. Factory-matched pair (TDO / 2S / 3S) or set of tapered roller bearings, pre-selected so the assembled axial or radial internal clearance falls in a controlled band. Suitable for gearbox pinion shafts, marine propeller-shaft thrust bearings, wheel-hub bearings.
Technical Specifications
- Type
- Matched pair / set of tapered roller bearings
- Designation
- SKF 32240/DF
- Bore d
- 200 mm
- HS code
- 8482.20
- Bore diameter
- 200 mm
- Outside diameter
- 360 mm
- Width, total
- 208 mm
- Width, inner ring
- 196 mm
- Width, outer ring
- 208 mm
- Contact angle
- 15.2 °
- Basic dynamic load rating
- 2229 kN
- Basic static load rating
- 4000 kN
- Reference speed
- 1000 r/min
- Limiting speed
- 1700 r/min
- Bearing part
- Complete bearing
- Number of rows
- 2
- Locating feature, bearing outer ring
- Without
- Bore type
- Cylindrical
- Cage
- Sheet metal
- Matched arrangement
- Face-to-face (X)
- Number of bearings in matched set
- 2
- Coating
- Without
- Sealing
- Without
- Lubricant
- None
- Relubrication feature
- With
- Indicative carbon footprint for new product
- 315 kg CO2e
- Product net weight
- 85 kg
- eClass code
- 23-05-09-10
Standards & Compliance
- Standard
- SKF designation convention
- Material
- As declared by SKF designation suffix
- Temperature Range
- Per SKF product data
- HS Code
- 8482.20
Cross References
- Timken 32240
- NSK 32240
- NTN 32240
- FAG 32240
- Koyo 32240
- Equivalent: 32240 (Timken)
- Equivalent: 32240 (NSK)
- Equivalent: 32240 (NTN)
- Equivalent: 32240 (FAG)
- Equivalent: 32240 (Koyo)
Compatibility & Fitment
Interchange with peer OEM equivalents on identical boundary plan and execution — confirm cage, clearance, sealing and precision-class suffix before substitution.
Product Documentation
More from SKF
SKF
SKF NJ1009ECP Single-row cylindrical roller bearing (NU / N / NJ / NUP)
SKF

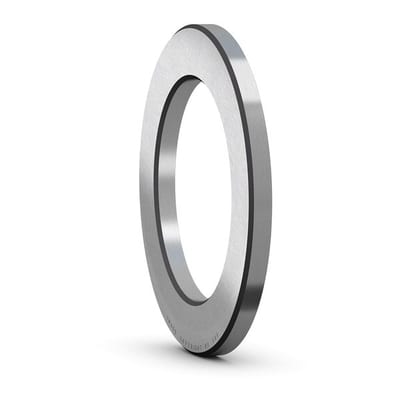

SKF WS81117 Cylindrical roller thrust bearing (81XXX)
SKF
SKF 99438 SKF Speedi-Sleeve shaft wear sleeve
SKF
SKF ASK18 Withdrawal sleeve
SKF
SKF C3192KM CARB toroidal roller bearing (C xxxx)
SKF
SKF COP.BTTL5 Cooper split roller bearing
SKF
SKF F2BRD17M-FM Flanged ball bearing unit (UCF / UCFC / UCFL)
SKF

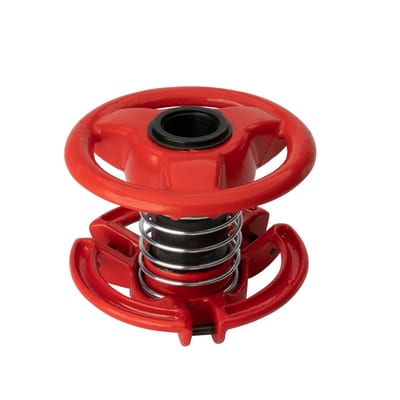

SKF TMMA75H/80-3 Bearing mounting / dismounting tool
