SKF 32230/DFC550 Matched pair / set of tapered roller bearings
Pricing
Request a quote
We reply within 24 hours
Product Description
SKF 32230/DFC550 matched pair / set of tapered roller bearings. Factory-matched pair (TDO / 2S / 3S) or set of tapered roller bearings, pre-selected so the assembled axial or radial internal clearance falls in a controlled band. Suitable for gearbox pinion shafts, marine propeller-shaft thrust bearings, wheel-hub bearings.
Technical Specifications
- Type
- Matched pair / set of tapered roller bearings
- Designation
- SKF 32230/DFC550
- Bore d
- 150 mm
- HS code
- 8482.20
- Bore diameter
- 150 mm
- Outside diameter
- 270 mm
- Contact angle
- 16.2 °
- Basic dynamic load rating
- 1341 kN
- Basic static load rating
- 2280 kN
- Reference speed
- 1400 r/min
- Limiting speed
- 2400 r/min
- Bearing part
- Complete bearing
- Number of rows
- 2
- Locating feature, bearing outer ring
- Without
- Bore type
- Cylindrical
- Cage
- Sheet metal
- Matched arrangement
- Face-to-face (X)
- Number of bearings in matched set
- 2
- Coating
- Without
- Sealing
- Without
- Lubricant
- None
- Relubrication feature
- With
- Indicative carbon footprint for new product
- 138 kg CO2e
- Product net weight
- 37.3 kg
Standards & Compliance
- Standard
- SKF designation convention
- Material
- As declared by SKF designation suffix
- Temperature Range
- Per SKF product data
- HS Code
- 8482.20
Cross References
- Timken 32230550
- NSK 32230550
- NTN 32230550
- FAG 32230550
- Koyo 32230550
- Equivalent: 32230550 (Timken)
- Equivalent: 32230550 (NSK)
- Equivalent: 32230550 (NTN)
- Equivalent: 32230550 (FAG)
- Equivalent: 32230550 (Koyo)
Compatibility & Fitment
Interchange with peer OEM equivalents on identical boundary plan and execution — confirm cage, clearance, sealing and precision-class suffix before substitution.
Product Documentation
More from SKF
SKF

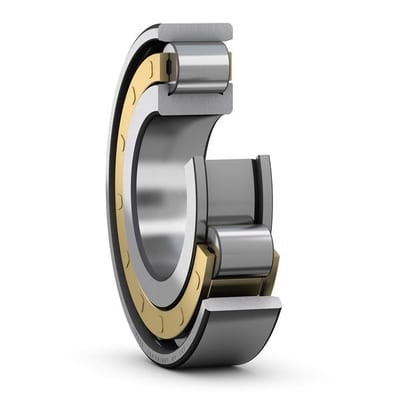

SKF N320ECM Single-row cylindrical roller bearing (NU / N / NJ / NUP)
SKF
SKF WS81102 Cylindrical roller thrust bearing (81XXX)
SKF
SKF 99387 SKF Speedi-Sleeve shaft wear sleeve
SKF
SKF AOHX3192G Withdrawal sleeve
SKF

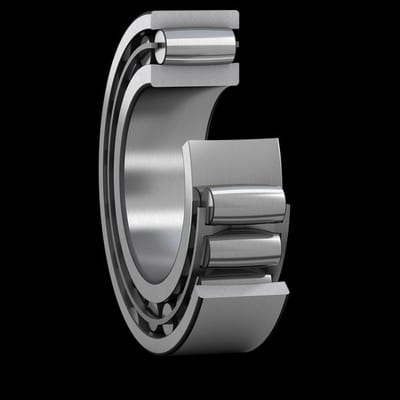

SKF C3156K CARB toroidal roller bearing (C xxxx)
SKF

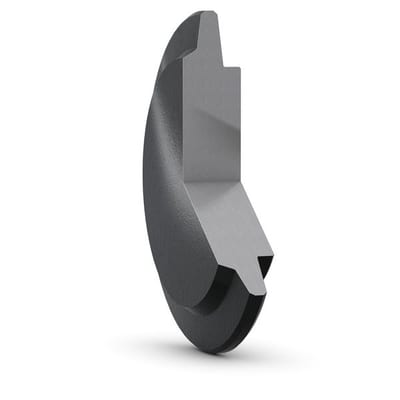

SKF COP.BP50M Cooper split roller bearing
