SKF 32228/DFC330 Matched pair / set of tapered roller bearings
Pricing
Request a quote
We reply within 24 hours
Product Description
SKF 32228/DFC330 matched pair / set of tapered roller bearings. Factory-matched pair (TDO / 2S / 3S) or set of tapered roller bearings, pre-selected so the assembled axial or radial internal clearance falls in a controlled band. Suitable for gearbox pinion shafts, marine propeller-shaft thrust bearings, wheel-hub bearings.
Technical Specifications
- Type
- Matched pair / set of tapered roller bearings
- Designation
- SKF 32228/DFC330
- Bore d
- 140 mm
- HS code
- 8482.20
- Bore diameter
- 140 mm
- Outside diameter
- 250 mm
- Width, total
- 143.5 mm
- Width, inner ring
- 136 mm
- Width, outer ring
- 143.5 mm
- Contact angle
- 16.2 °
- Basic dynamic load rating
- 1185 kN
- Basic static load rating
- 2000 kN
- Reference speed
- 1500 r/min
- Limiting speed
- 2600 r/min
- Bearing part
- Complete bearing
- Number of rows
- 2
- Locating feature, bearing outer ring
- Without
- Bore type
- Cylindrical
- Cage
- Sheet metal
- Matched arrangement
- Face-to-face (X)
- Number of bearings in matched set
- 2
- Coating
- Without
- Sealing
- Without
- Lubricant
- None
- Relubrication feature
- With
- Indicative carbon footprint for new product
- 108 kg CO2e
- Product net weight
- 29.3 kg
- eClass code
- 23-05-09-10
Standards & Compliance
- Standard
- SKF designation convention
- Material
- As declared by SKF designation suffix
- Temperature Range
- Per SKF product data
- HS Code
- 8482.20
Cross References
- Timken 32228330
- NSK 32228330
- NTN 32228330
- FAG 32228330
- Koyo 32228330
- Equivalent: 32228330 (Timken)
- Equivalent: 32228330 (NSK)
- Equivalent: 32228330 (NTN)
- Equivalent: 32228330 (FAG)
- Equivalent: 32228330 (Koyo)
Compatibility & Fitment
Interchange with peer OEM equivalents on identical boundary plan and execution — confirm cage, clearance, sealing and precision-class suffix before substitution.
Product Documentation
More from SKF
SKF

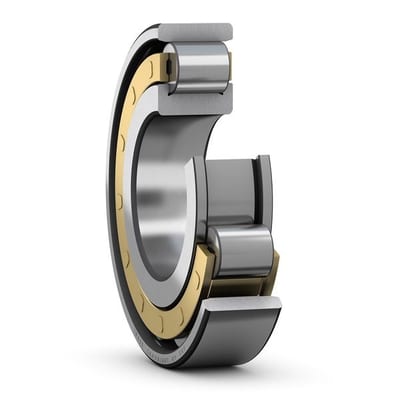

SKF N318ECM/C3 Single-row cylindrical roller bearing (NU / N / NJ / NUP)
SKF
SKF K81216TN Cylindrical roller thrust bearing (81XXX)
SKF
SKF 99367 SKF Speedi-Sleeve shaft wear sleeve
SKF
SKF AOHX3088G Withdrawal sleeve
SKF

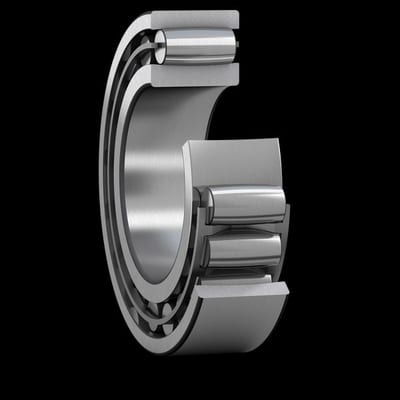

SKF C3148 CARB toroidal roller bearing (C xxxx)
