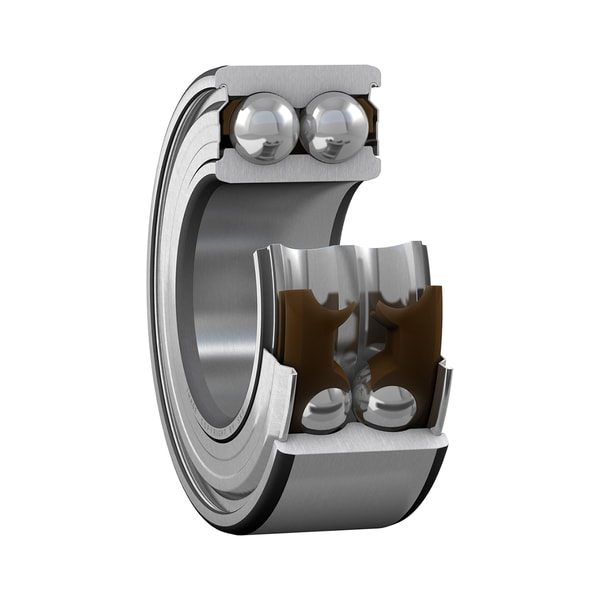

SKF 3206A-2ZTN9/WT Double-row angular contact ball bearing
Pricing
Request a quote
We reply within 24 hours
Product Description
SKF 3206A-2ZTN9/WT double-row angular contact ball bearing. Double-row angular contact ball bearing (32xx-2Z, 33xx, 52xx / 53xx) taking heavy combined radial and axial load in both directions from a single position. Contact angle 30° or 45°. Standard shielded (2Z) or contact-sealed (2RS1) execution. Suitable for pump impeller shafts, gearbox output shafts, propeller-shaft thrust ends on smaller marine gearboxes.
Technical Specifications
- Type
- Double-row angular contact ball bearing
- Designation
- SKF 3206A-2ZTN9/WT
- Bore d
- 30 mm
- HS code
- 8482.10
- Bore diameter
- 30 mm
- Outside diameter
- 62 mm
- Width
- 23.8 mm
- Contact angle
- 30 °
- Basic dynamic load rating
- 30.5 kN
- Basic static load rating
- 22 kN
- Reference speed
- 10000 r/min
- Limiting speed
- 10000 r/min
- SKF performance class
- SKF Explorer
- Contact type
- Normal contact (two-point contact)
- Number of rows
- 2
- Locating feature, bearing outer ring
- Without
- Ring type
- One-piece inner and outer rings
- Cage
- Non-metallic
- Arrangement of contact angle (double-row bearing)
- Back-to-back (O)
- Matched arrangement
- No
- Universal matching bearing
- No
- Axial internal clearance
- CN
- Material, bearing
- Bearing steel
- Coating
- Without
- Sealing
- Shield on both sides
- Sealing type
- Non-contact
- Lubricant
- Grease
- Relubrication feature
- Without
- Indicative carbon footprint for new product
- 1.1 kg CO2e
- Product net weight
- 0.292 kg
- eClass code
- 23-05-08-03
- UNSPSC code
- 31171531
Standards & Compliance
- Standard
- SKF designation convention (see description for governing ISO / DIN)
- Material
- As declared by SKF designation suffix
- Temperature Range
- Per SKF product data
- HS Code
- 8482.10
Cross References
- FAG 320629
- NSK 320629
- NTN 320629
- Timken 320629
- Koyo 320629
- Equivalent: 320629 (FAG)
- Equivalent: 320629 (NSK)
- Equivalent: 320629 (NTN)
- Equivalent: 320629 (Timken)
- Equivalent: 320629 (Koyo)
Compatibility & Fitment
Interchange with peer OEM equivalents on identical boundary plan and execution — confirm cage, clearance, sealing and precision-class suffix before substitution.
