SKF 31328X/DFC260 Matched pair / set of tapered roller bearings
Pricing
Request a quote
We reply within 24 hours
Product Description
SKF 31328X/DFC260 matched pair / set of tapered roller bearings. Factory-matched pair (TDO / 2S / 3S) or set of tapered roller bearings, pre-selected so the assembled axial or radial internal clearance falls in a controlled band. Suitable for gearbox pinion shafts, marine propeller-shaft thrust bearings, wheel-hub bearings.
Technical Specifications
- Type
- Matched pair / set of tapered roller bearings
- Designation
- SKF 31328X/DFC260
- Bore d
- 140 mm
- HS code
- 8482.20
- Bore diameter
- 140 mm
- Outside diameter
- 300 mm
- Width, total
- 154 mm
- Width, inner ring
- 140 mm
- Width, outer ring
- 154 mm
- Contact angle
- 28.8 °
- Basic dynamic load rating
- 1264 kN
- Basic static load rating
- 1800 kN
- Reference speed
- 1200 r/min
- Limiting speed
- 2200 r/min
- Bearing part
- Complete bearing
- Number of rows
- 2
- Locating feature, bearing outer ring
- Without
- Bore type
- Cylindrical
- Cage
- Sheet metal
- Matched arrangement
- Face-to-face (X)
- Number of bearings in matched set
- 2
- Coating
- Without
- Sealing
- Without
- Lubricant
- None
- Relubrication feature
- With
- Indicative carbon footprint for new product
- 182 kg CO2e
- Product net weight
- 49.1 kg
- eClass code
- 23-05-09-10
Standards & Compliance
- Standard
- SKF designation convention
- Material
- As declared by SKF designation suffix
- Temperature Range
- Per SKF product data
- HS Code
- 8482.20
Cross References
- Timken 31328260
- NSK 31328260
- NTN 31328260
- FAG 31328260
- Koyo 31328260
- Equivalent: 31328260 (Timken)
- Equivalent: 31328260 (NSK)
- Equivalent: 31328260 (NTN)
- Equivalent: 31328260 (FAG)
- Equivalent: 31328260 (Koyo)
Compatibility & Fitment
Interchange with peer OEM equivalents on identical boundary plan and execution — confirm cage, clearance, sealing and precision-class suffix before substitution.
Product Documentation
More from SKF
SKF
SKF HJ2248 Single-row cylindrical roller bearing (NU / N / NJ / NUP)
SKF
SKF 81228M Cylindrical roller thrust bearing (81XXX)
SKF
SKF 99167 SKF Speedi-Sleeve shaft wear sleeve
SKF
SKF AHX2324G Withdrawal sleeve
SKF

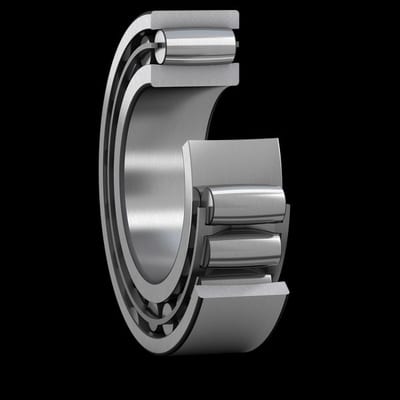

SKF C2222K/C3 CARB toroidal roller bearing (C xxxx)
SKF

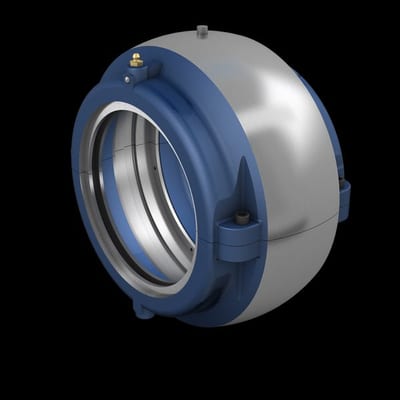

SKF COP.01C5GR Cooper split roller bearing
SKF
SKF F2B110-TF Flanged ball bearing unit (UCF / UCFC / UCFL)
SKF

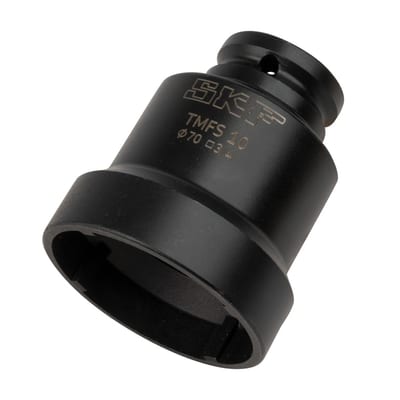

SKF TMFS10 Impact socket for KM lock nuts
