SKF 31318/DF Matched pair / set of tapered roller bearings
Pricing
Request a quote
We reply within 24 hours
Product Description
SKF 31318/DF matched pair / set of tapered roller bearings. Factory-matched pair (TDO / 2S / 3S) or set of tapered roller bearings, pre-selected so the assembled axial or radial internal clearance falls in a controlled band. Suitable for gearbox pinion shafts, marine propeller-shaft thrust bearings, wheel-hub bearings.
Technical Specifications
- Type
- Matched pair / set of tapered roller bearings
- Designation
- SKF 31318/DF
- Bore d
- 90 mm
- HS code
- 8482.20
- Bore diameter
- 90 mm
- Outside diameter
- 190 mm
- Width, total
- 93 mm
- Width, inner ring
- 86 mm
- Width, outer ring
- 93 mm
- Contact angle
- 28.8 °
- Basic dynamic load rating
- 486 kN
- Basic static load rating
- 630 kN
- Reference speed
- 1900 r/min
- Limiting speed
- 3400 r/min
- Bearing part
- Complete bearing
- Number of rows
- 2
- Locating feature, bearing outer ring
- Without
- Bore type
- Cylindrical
- Cage
- Sheet metal
- Matched arrangement
- Face-to-face (X)
- Number of bearings in matched set
- 2
- Coating
- Without
- Sealing
- Without
- Lubricant
- None
- Relubrication feature
- With
- Indicative carbon footprint for new product
- 42.3 kg CO2e
- Product net weight
- 11.4 kg
- eClass code
- 23-05-09-10
Standards & Compliance
- Standard
- SKF designation convention
- Material
- As declared by SKF designation suffix
- Temperature Range
- Per SKF product data
- HS Code
- 8482.20
Cross References
- Timken 31318
- NSK 31318
- NTN 31318
- FAG 31318
- Koyo 31318
- Equivalent: 31318 (Timken)
- Equivalent: 31318 (NSK)
- Equivalent: 31318 (NTN)
- Equivalent: 31318 (FAG)
- Equivalent: 31318 (Koyo)
Compatibility & Fitment
Interchange with peer OEM equivalents on identical boundary plan and execution — confirm cage, clearance, sealing and precision-class suffix before substitution.
Product Documentation
More from SKF
SKF
SKF HJ214EC Single-row cylindrical roller bearing (NU / N / NJ / NUP)
SKF
SKF 812/630M Cylindrical roller thrust bearing (81XXX)
SKF
SKF 99143 SKF Speedi-Sleeve shaft wear sleeve
SKF
SKF AH316 Withdrawal sleeve
SKF
SKF C2216KV CARB toroidal roller bearing (C xxxx)
SKF

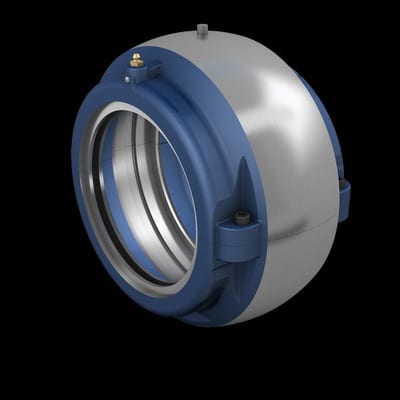

SKF COP.01C308EX Cooper split roller bearing
SKF
SKF F2B106-LF-AH Flanged ball bearing unit (UCF / UCFC / UCFL)
SKF

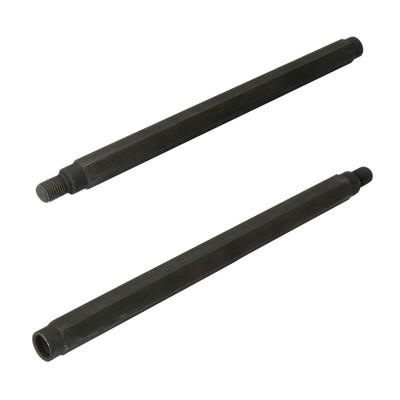

SKF TMBS100E-4 Bearing mounting / dismounting tool
