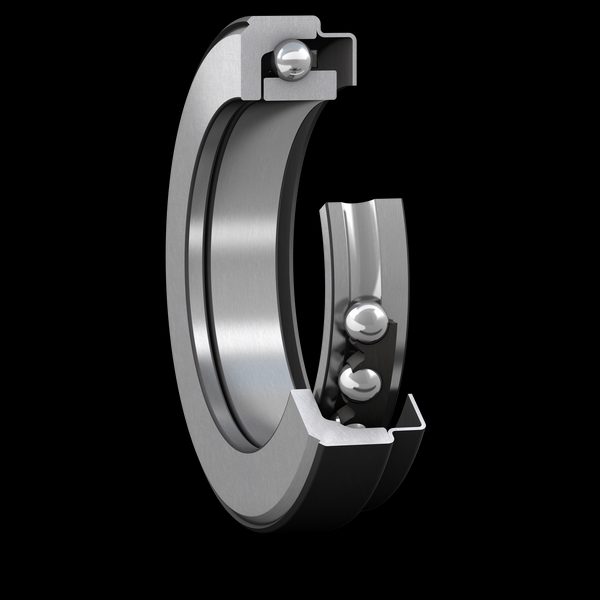

SKF 307418C Angular contact ball bearing

SKF 307418C angular contact ball bearing. Single-row angular contact ball bearing configured to take combined radial and one-direction axial load. Contact angle 15°, 25°, 30° or 40° per suffix (BE / BEP / BECBP execution). Two bearings are commonly mounted in an opposing pair (back-to-back, face-to-face or tandem) so the pair carries axial load in both directions and takes moment load. Manufactured to ISO 492 Class Normal. Bore diameter d = 90 mm per ISO 15.

Type

Angular contact ball bearing

Designation

SKF 307418C

Standard

ISO 15 / DIN 623 dimension plan; ISO 492 Class Normal precision

HS code

8482.10

Bore diameter

65 mm

Outside diameter

96.6 mm

Width

23 mm

Contact angle

20 °

Basic dynamic load rating

22.5 kN

Basic static load rating

22 kN

Reference speed

7500 r/min

Limiting speed

7500 r/min

Contact type

Normal contact (two-point contact)

Number of rows

1

Locating feature, bearing outer ring

Without

Ring type

One-piece inner and outer rings

Matched arrangement

No

Universal matching bearing

No

Axial internal clearance

Not applicable

Tolerance class

Normal

Material, bearing

Bearing steel

Coating

Without

Sealing

Capped

Lubricant

None

Relubrication feature

Without

Indicative carbon footprint for new product

1.6 kg CO2e

Product net weight

0.425 kg

eClass code

23-05-08-03

UNSPSC code

31171531

Standard

ISO 15 / ISO 492 / DIN 623

Material

Bearing steel — 100Cr6 (through-hardened) or SNR-nitrided; cage as declared by suffix

Temperature Range

-30 to +120 °C standard grease

HS Code

8482.10

• Timken 307418
• NSK 307418
• NTN 307418
• FAG 307418
• Koyo 307418
• Equivalent: 307418 (Timken)
• Equivalent: 307418 (NSK)
• Equivalent: 307418 (NTN)
• Equivalent: 307418 (FAG)
• Equivalent: 307418 (Koyo)
