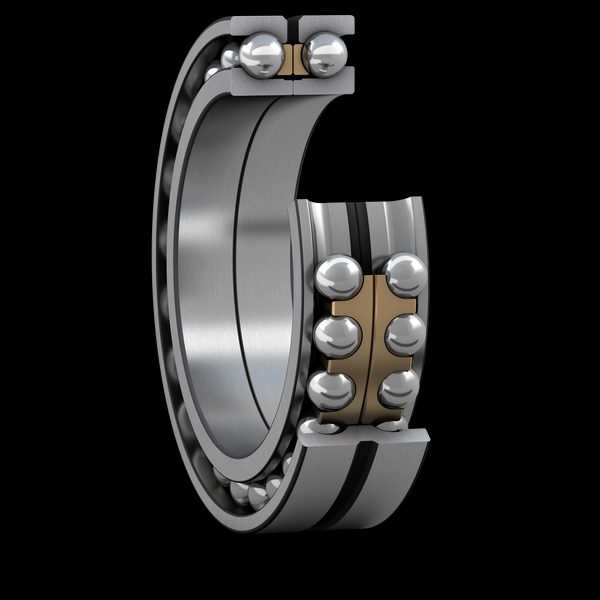

SKF 305286D Double-row angular contact ball bearing

SKF 305286D double-row angular contact ball bearing. Double-row angular contact ball bearing (32xx-2Z, 33xx, 52xx / 53xx) taking heavy combined radial and axial load in both directions from a single position. Contact angle 30° or 45°. Standard shielded (2Z) or contact-sealed (2RS1) execution. Suitable for pump impeller shafts, gearbox output shafts, propeller-shaft thrust ends on smaller marine gearboxes.

Type

Double-row angular contact ball bearing

Designation

SKF 305286D

HS code

8482.10

Bore diameter

150 mm

Outside diameter

225 mm

Width

73 mm

Contact angle

40 °

Basic dynamic load rating

182 kN

Basic static load rating

265 kN

Reference speed

1700 r/min

Limiting speed

2000 r/min

Contact type

Normal contact (two-point contact)

Number of rows

2

Locating feature, bearing outer ring

Without

Ring type

Two-piece inner ring and one-piece outer ring

Cage

Machined brass

Arrangement of contact angle (double-row bearing)

Back-to-back (O)

Matched arrangement

No

Universal matching bearing

No

Axial internal clearance

NSTD

Material, bearing

Bearing steel

Coating

Without

Sealing

Without

Lubricant

None

Relubrication feature

With

Indicative carbon footprint for new product

36.1 kg CO2e

Product net weight

9.75 kg

eClass code

23-05-08-03

UNSPSC code

31171531

Standard

SKF designation convention (see description for governing ISO / DIN)

Material

As declared by SKF designation suffix

Temperature Range

Per SKF product data

HS Code

8482.10

• FAG 305286
• NSK 305286
• NTN 305286
• Timken 305286
• Koyo 305286
• Equivalent: 305286 (FAG)
• Equivalent: 305286 (NSK)
• Equivalent: 305286 (NTN)
• Equivalent: 305286 (Timken)
• Equivalent: 305286 (Koyo)
