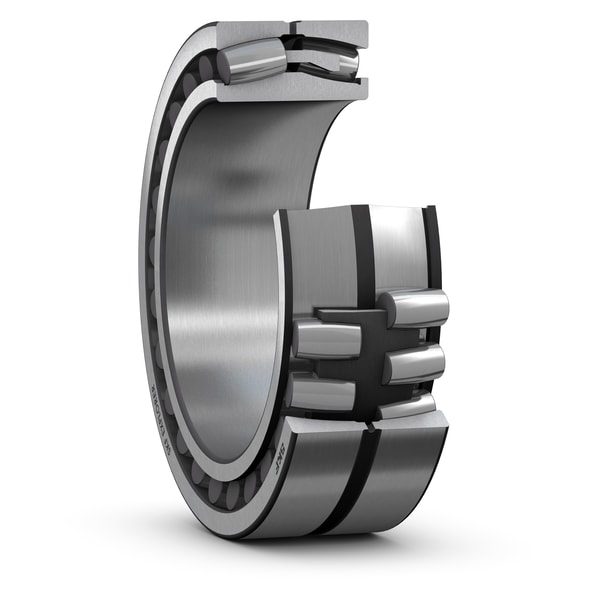

SKF 240/630BCK30 Spherical roller bearing

SKF 240/630BCK30 spherical roller bearing. Self-aligning double-row spherical roller bearing designed for very heavy radial load with concurrent axial load in either direction, and inherent tolerance for shaft-to-housing misalignment. Two rows of symmetrical rollers ride on a common concave outer-ring raceway. Common execution suffixes cover CC (window-type cage), CA (machined brass cage), EK (tapered bore for adapter-sleeve mount), and W33 (annular groove and three lubrication holes in outer ring). Manufactured to ISO 492 Class Normal / P6. Bore diameter d = 150 mm per ISO 15.

Type

Spherical roller bearing

Designation

SKF 240/630BCK30

Standard

ISO 15 / DIN 623 dimension plan; ISO 492 Class Normal precision

HS code

8482.20

Bore diameter

630 mm

Outside diameter

920 mm

Width

290 mm

Basic dynamic load rating

9307 kN

Basic static load rating

17600 kN

Reference speed

20 r/min

Limiting speed

45 r/min

SKF performance class

SKF Explorer

Number of rows

2

Locating feature, bearing outer ring

Without

Bore type

Tapered 1:30

Cage

Machined brass

Radial internal clearance

CN

Tolerance class for dimensions

Normal

Tolerance class for run-out

Normal

Sealing

Without

Lubricant

None

Relubrication feature

With

Candidate for remanufacturing

Yes

Indicative carbon footprint for new product

2268 kg CO2e

Indicative carbon footprint for remanufactured product

754 kg CO2e

Product net weight

613 kg

eClass code

23-05-09-11

UNSPSC code

31171510

Standard

ISO 15 / ISO 492 / DIN 623

Material

Bearing steel — 100Cr6 (through-hardened) or SNR-nitrided; cage as declared by suffix

Temperature Range

-30 to +120 °C standard grease

HS Code

8482.20

• Timken 24063030
• NSK 24063030
• NTN 24063030
• FAG 24063030
• Koyo 24063030
• Equivalent: 24063030 (Timken)
• Equivalent: 24063030 (NSK)
• Equivalent: 24063030 (NTN)
• Equivalent: 24063030 (FAG)
• Equivalent: 24063030 (Koyo)
