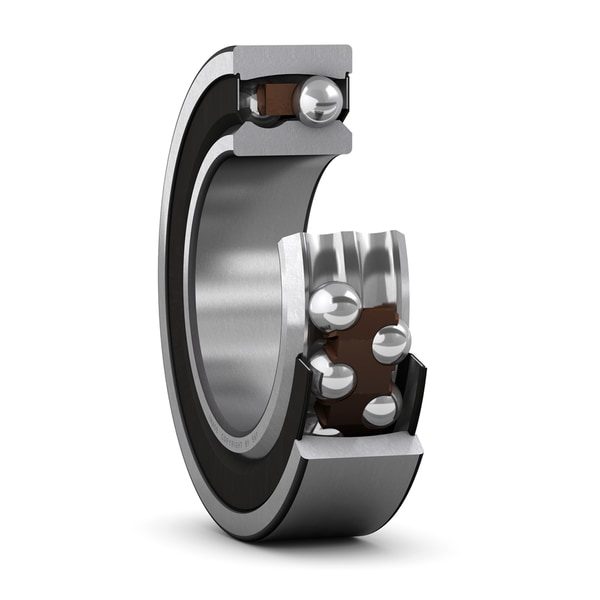

SKF 2304E-2RS1TN9 Self-aligning ball bearing (12XX / 13XX / 22XX)
Pricing
Request a quote
We reply within 24 hours
Product Description
SKF 2304E-2RS1TN9 self-aligning ball bearing (12xx / 13xx / 22xx). Double-row self-aligning ball bearing with a spherical outer-ring raceway that tolerates static shaft-to-housing misalignment up to 3° without affecting bearing life. Series 12xx (light), 13xx (medium) and 22xx (wide) per ISO 15. Suitable for long line-shafts on marine deck machinery and conveyors where accurate housing alignment cannot be guaranteed. Standard cage nylon PA66 or fabric-reinforced phenolic.
Technical Specifications
- Type
- Self-aligning ball bearing (12xx / 13xx / 22xx)
- Designation
- SKF 2304E-2RS1TN9
- Bore d
- 20 mm
- HS code
- 8482.10
- Bore diameter
- 20 mm
- Outside diameter
- 52 mm
- Width
- 21 mm
- Basic dynamic load rating
- 14.3 kN
- Basic static load rating
- 4 kN
- Reference speed
- 24000 r/min
- Limiting speed
- 9000 r/min
- Retaining feature, inner ring
- None
- Locating feature, bearing outer ring
- Without
- Number of rows
- 2
- Bore type
- Cylindrical
- Cage
- Non-metallic
- Radial internal clearance
- CN
- Tolerance class
- Normal
- Material, bearing
- Bearing steel
- Coating
- Without
- Sealing
- Seal on both sides
- Sealing type
- Contact
- Lubricant
- Grease
- Relubrication feature
- Without
- Indicative carbon footprint for new product
- 0.76 kg CO2e
- Product net weight
- 0.205 kg
- eClass code
- 23-05-08-06
- UNSPSC code
- 31171532
- Dimensions (d × D × B)
- 20 × 52 × 21 mm
Standards & Compliance
- Standard
- SKF designation convention
- Material
- As declared by SKF designation suffix
- Temperature Range
- Per SKF product data
- HS Code
- 8482.10
Cross References
- FAG 2304219
- NSK 2304219
- NTN 2304219
- Timken 2304219
- Koyo 2304219
- Alt. designation 2304 E-2RS1TN9
- Equivalent: 2304219 (FAG)
- Equivalent: 2304219 (NSK)
- Equivalent: 2304219 (NTN)
- Equivalent: 2304219 (Timken)
- Equivalent: 2304219 (Koyo)
Compatibility & Fitment
Interchange with peer OEM equivalents on identical boundary plan and execution — confirm cage, clearance, sealing and precision-class suffix before substitution.
